- The ejector and vacuum break functions are integrated. (Vacuum generation ⇔ break air can be switched by turning the air supply to the ejector ON/OFF.)
- It is small and lightweight, so it can be used at the end of vacuum piping.
- By installing a shutoff valve, the adsorption/destruction cycle can be speeded up.
- For suction and transport of workpieces.
Specifications in detail
Large flow rate type
Applicable tube outer diameter D (mm): 6 (vacuum port) x 6 (air supply port) x 6 (break air supply port)
Nozzle diameter (mm): 0.7
Fluid used: Air
Operating temperature range (℃): 5 to 50
Operating pressure range (MPa): 0.3 to 0.7
Rated supply pressure (MPa): 0.5
Refueling: Not required

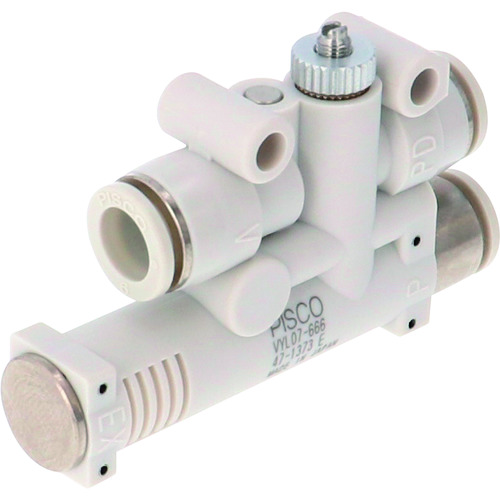

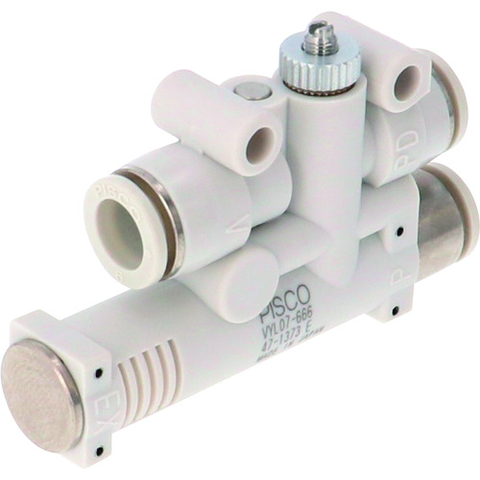

PISCO VYL07-666
