Features
- This is a vacuum filter that is ideal for fields that require high-speed cycles in vacuum systems.
- This vacuum filter has a small volume and is ideal for fields where high cycle speeds are required for vacuum systems.
- You can choose from two element sizes depending on the amount of dust and when the element needs to be replaced.
Specifications in detail
Operating temperature range: 0 to 60°C (no freezing)
Operating pressure: -100 to 0kPa
Filtration degree: 5μm (collection efficiency 95%) (based on our measurement conditions)
Compatible tube outer diameter D (mm): 6 x 6
Filtration area (cm2): 2.8
Filtration accuracy (μm): 5
Operating temperature range (℃): 0 to 60 (no freezing)
Fluid used: Air
Operating pressure (kPa): -100 to 0

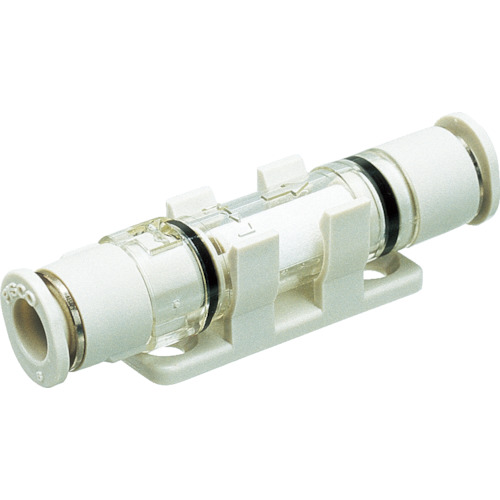

PISCO VFU1-66-15P
