- The material used for the liquid contact parts is equivalent to SUS316 (SUS316 or CF8M).
- The structure is designed so that the stem that secures the handle will not come off.
- The inputs and outputs can be mounted in either direction.
- It is a 3 piece, full bore type.
Specifications in detail
Height (mm): 69
Operating pressure (MPa): 6.9 (-29 to 38°C)
Operating temperature range (℃): -29 to 232
Connection size: Rc1/4
Fluids used: Air, inert gases such as nitrogen and helium (non-toxic), water, liquids, other chemicals, etc. (conditions apply)
Vacuum pressure (kPa): -101
Maximum operating pressure (MPa): 6.9 (-29 to 38°C)

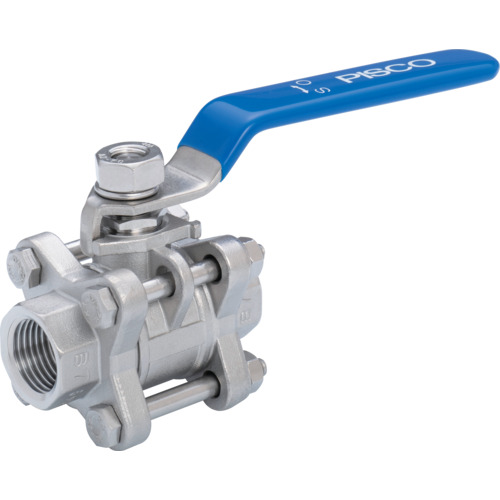

PISCO NSBVF30-02
