- The material used for the liquid contact parts is equivalent to SUS316 (SUS316 or CF8M).
- The structure is designed so that the stem that secures the handle will not come off.
- The inputs and outputs can be mounted in either direction.
- It is a reduced bore type.
- Comes with a SUS316 one-touch fitting that enables smart piping.
Specifications in detail
Height (mm): 43
Operating pressure (MPa): 1.0
Operating temperature range (℃): -5 to 150
Tube outer diameter (mm): 4
Applicable tube outer diameter D(mm): 4
Fluids used: Air, water (conditions apply), other chemicals, etc. (conditions apply)
Maximum operating pressure (MPa): 5.5
Vacuum pressure (kPa): -100
Port compatible tube outer diameter (mm): 4

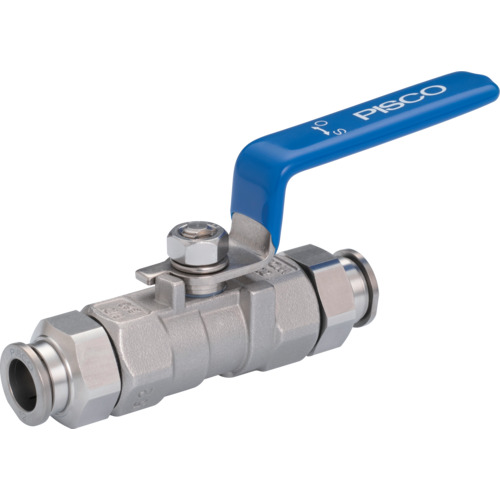

PISCO NSBV10-44
