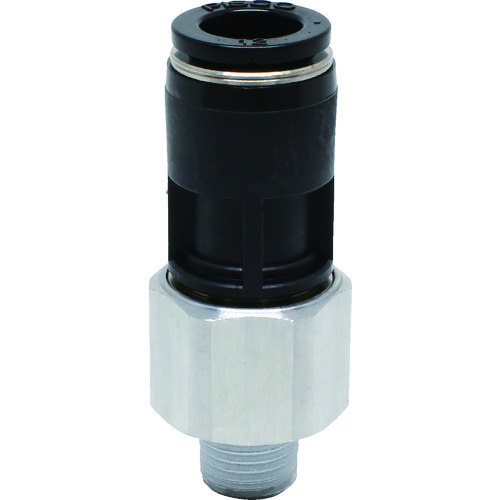

- This is a one-touch fitting that can be used for piping to the oscillating and rotating parts of equipment.
- Since bearings are used in the rotating parts, it can be used in oscillating and rotating parts.
Specifications in detail
Operating temperature range: 0 to 60°C (no freezing)
Maximum operating pressure: 1MPa
Vacuum pressure used: -100kPa
Applicable tube outer diameter D(mm): 12
Connection size: R1/4
Hexagonal width (mm): 24
Maximum operating pressure (MPa): 1
Operating temperature range (℃): 0 to 60 (no freezing)
Fluid used: Air
Allowable RPM (min(-1)): 250

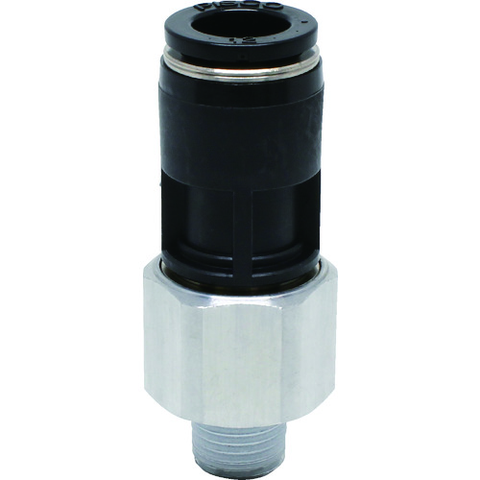

PISCO RC12-02
