Features
- It has excellent chemical resistance and is ideal for fields such as chemistry, food, medicine, and semiconductors.
Note
- Do not apply loads such as tension, twisting, or extreme bending to the tube, as this may cause the tube to collapse, burst, or come loose.
- The tube's bursting pressure decreases as the temperature rises, so be sure to understand the operating pressure and ensure that you have a sufficient safety margin.
- Use the tube with a minimum bending radius or greater.
- When attaching a tube to a one-touch fitting, please check that the cut area of the tube is cut at a right angle, that there are no scratches on the outer diameter of the tube, and that the tube is not oval.
Specifications in detail
Color: Black
Total length (m): 50
Minimum bending radius (mm): 14
Operating pressure (MPa): 1.6
Operating temperature range (℃): -65 to 200 (no freezing)
Tube outer diameter (φD) (mm): φ6
Tube inner diameter (φD) (mm): φ4
Minimum mounting radius (mm): 30
Please contact us if you are using it for chemicals.
Fluids used: Air, water (conditions apply), chemicals, etc. (conditions apply)
Vacuum pressure used (kPa): -100
Maximum operating pressure (Mpa): 1.6 (at 20℃ 65%RH)

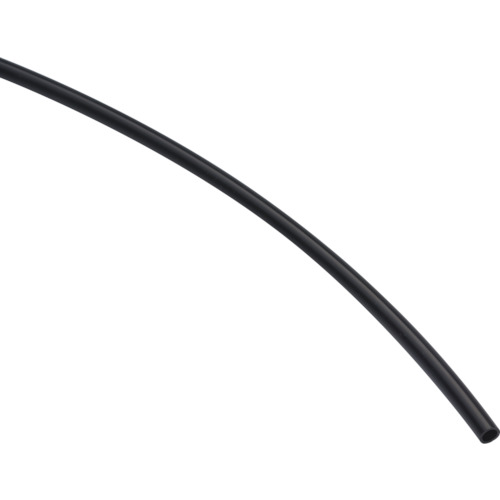

PISCO SET0640-50-B
