- Since only the air input from one side flows, it is possible to maintain pressure on the output side.
- It can also be used for vacuum maintenance and low pressure piping.
- Air input from one side flows while air input from the opposite direction does not flow, so the pressure on the output side can be kept unchanged.
- It can also be used for vacuum maintenance and low pressure piping.
Specifications in detail
Operating temperature range: 0 to 60°C (no freezing)
Operating pressure: 0.9MPa
Minimum operating pressure difference: 0.01MPa or less
Minimum check pressure difference: 0.04MPa
Effective area (mm2): 2.9
Applicable tube outer diameter D(mm): 4×4
Total length (mm): 31.5
Operating pressure (MPa): -0.1 to 0.9
Operating temperature range (℃): 0 to 60 (no freezing)
Fluid used: Air

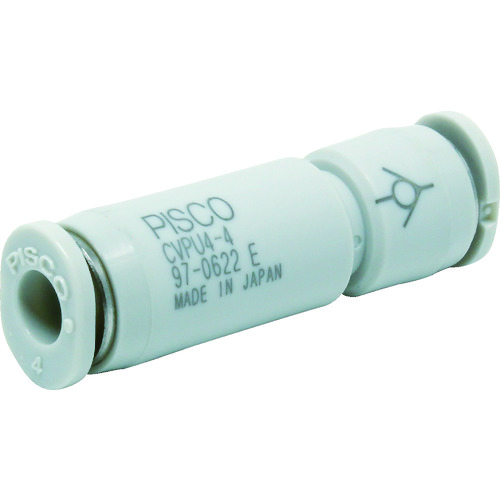

PISCO CVPU4-4
