- Opens or closes the air pressure input to the equipment.
- The main body material is PPS.
- Water can be poured. (Conditions apply)
- Ensures an effective cross-sectional area that matches the tube size.
Specifications in detail
Operating temperature range: 0 to 60°C (no freezing)
Operating pressure: 0.9MPa
Vacuum pressure used: -100kPa
Applicable tube outer diameter D(mm): 8
Connection size: R1/4
Operating pressure (MPa): -0.1 to 0.9
Operating temperature range (℃): 0 to 60 (no freezing)
Vacuum pressure (kPa): -100
Fluids used: Air, water (conditions apply)

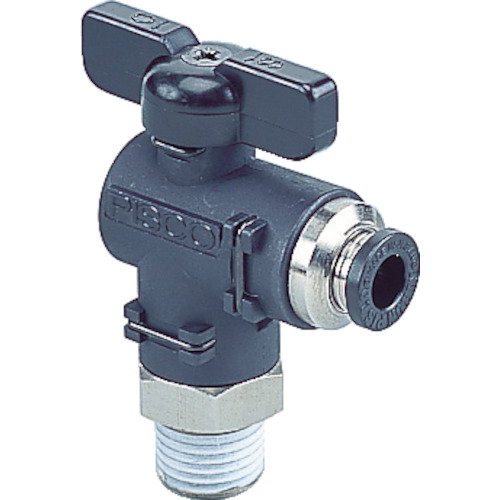

PISCO BVLC20-0802
