- Opens or closes the air pressure input to the equipment.
- The lever has markings, allowing for easy flow rate adjustment.
Specifications in detail
Operating temperature range: 0 to 60°C (no freezing)
Operating pressure: 0.7MPa
Vacuum pressure used: -100kPa
Applicable tube outer diameter D(mm): 6
Connection size: R1/8
Operating pressure (MPa): -0.1 to 0.7
Operating temperature range (℃): 0 to 60 (no freezing)
Vacuum pressure (kPa): -100
Fluid used: Air
Type: Elbow B
Tube end C(mm): 11.7
E1(mm): 39.6
E2(mm):24.6

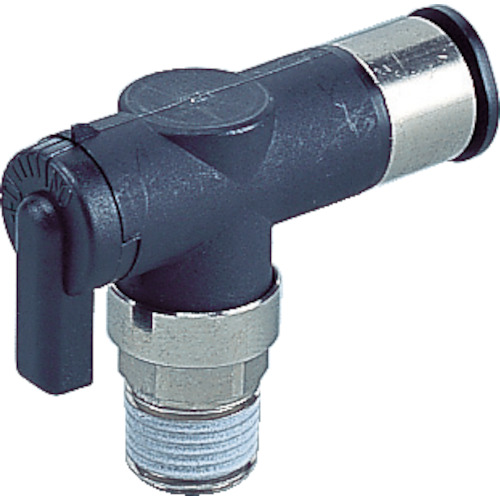

PISCO BVLC6-01
