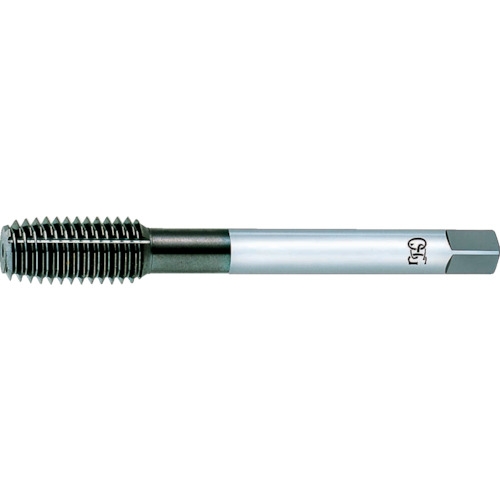

OSG Corporation Việt Nam | OSG VP new roll tap (for metric threads) for blind holes MW4782399

OSG Corporation Việt Nam | OSG VP new roll tap (for metric threads) for blind holes MW4782399

Thông tin sản phẩm

Tap grade: RH class
Accuracy: RH5
Accuracy notation: STD+1
Nominal size: M2.6
Pitch (mm): 0.45
Thread length (mm): 14
br>Total length (mm): 44
Shank diameter (mm): 3
Shank square part (mm): 2.5
Number of biting threads: 2
Processing thread: Metric thread

OSG Corporation VP-NRT-B-STD1-M2.6 x 0.45

OSG Corporation Việt Nam | OSG VP new roll tap (for metric threads) for blind holes MW4782399

Thương hiệu: OSG Corporation

Liên hệ

Suitable for both steel and non-ferrous alloys. Demonstrates high performance in highly dilute water-soluble tapping.
High efficiency and long life machining is possible.

For blind hole drilling.
Work materials: low, medium, and high carbon steel, stainless steel, copper, brass, brass castings, rolled aluminum materials, aluminum alloy castings, zinc alloy castings, alloy steel, cast steel.

OSG Corporation VP-NRT-B-STD1-M2.6 x 0.45
