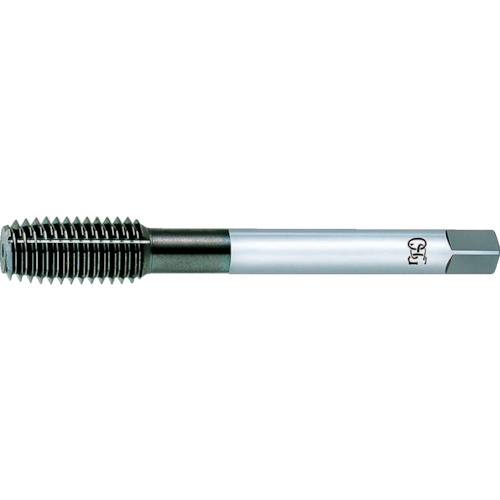

OSG Corporation Việt Nam | OSG VP new roll tap (for metric threads) for blind holes MW4782372

OSG Corporation Việt Nam | OSG VP new roll tap (for metric threads) for blind holes MW4782372

Thông tin sản phẩm

Processing thread: Metric thread
Number of threads: 2
Tap grade: RH class
Accuracy: RH5
Accuracy notation: STD+1
Nominal size: M1.4
Pitch (mm): 0.3
Thread length (mm): 9
Overall length (mm): 34
Shank diameter (mm): 3
Shank square part (mm): 2.5
Number of biting threads: 2
Processing thread: Metric thread

OSG Corporation VP-NRT-B-STD1-M1.4 x 0.3

OSG Corporation Việt Nam | OSG VP new roll tap (for metric threads) for blind holes MW4782372

Thương hiệu: OSG Corporation

Liên hệ

Suitable for both steel and non-ferrous alloys. Demonstrates high performance in highly dilute water-soluble tapping.
High efficiency and long life machining is possible.

For blind hole drilling.
Work materials: low, medium, and high carbon steel, stainless steel, copper, brass, brass castings, rolled aluminum materials, aluminum alloy castings, zinc alloy castings, alloy steel, cast steel.

OSG Corporation VP-NRT-B-STD1-M1.4 x 0.3
