Features
- It is a small, lightweight type that allows for high-speed rotation.
- The collet has been designed to improve runout accuracy and reduce operator fatigue.
- The body is hexagonal, making it easier to hold in your hand.
- It has a resin body.
Applications
- For correcting spot welding and removing burrs.
Specifications in detail
Air pressure used: 0.6MPa
Tool tip: Shaft diameter 6mm (grinding wheel)
Chuck inner diameter (mm): 6
No-load rotation speed (min-1): 22000
Air consumption (m3/min): 0.50
Hose attachment port: Rc1/4
Exhaust: Front
Total length (mm): 183
No-load rotation speed (rpm): 22000

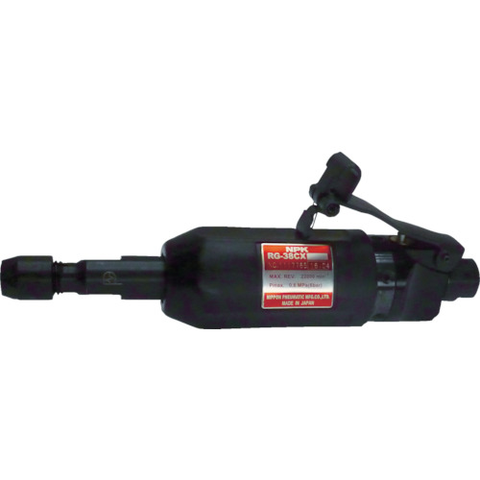

NPK RG-38CX
