Features

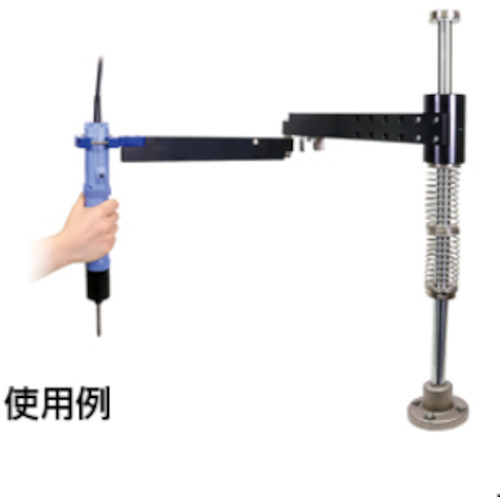

- This is a screwdriver stand that can be attached to the electric screwdriver "Delvo".
- It is possible to reduce the reaction force when tightening screws.
- This reduces the amount of screw tightening work required and improves stability and reliability.
- It is possible to tighten vertically to the product.
Note
- Do not use with an arm angle of less than ±30°.
Specifications in detail
Total height: 550mm
Maximum movable radius (when φ52 is installed): R650 (when arm angle is 30°)
Up and down stroke (when DLV70A is installed): 100mm (when using stroke extension set: 150mm)
Compatible driver diameter: φ30 to φ52mm
Compatible driver: All Delvo models
Compatible models: All Delvo models
Type: Swing type
Compatible driver diameter (mm): 30 to 52
Maximum driver weight (kg): 1.0
NITTO DRA-SW-650
