Features

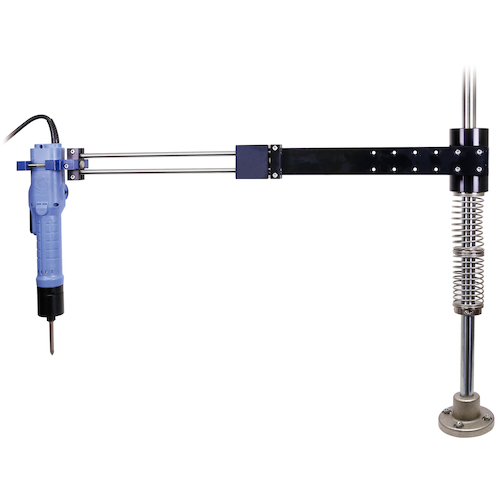

- This is a screwdriver stand that can be attached to the electric screwdriver "Delvo".
- It is possible to reduce the reaction force when tightening screws.
- This reduces the amount of screw tightening work required and improves stability and reliability.
Specifications in detail
Overall height (mm): 550
Maximum movable radius (when φ52 is installed): R650 (when arm angle is 30°)
Up and down stroke (when DLV70A is installed): 100 mm (when using stroke extension set: 150 mm)
Slide amount (mm): 250
Compatible driver diameter (mm): φ30 to φ52
Compatible models: All Delvo models
Main column height (mm): 550
Main column diameter (mm): 86
Mounting tool outer diameter (mm): φ30 to φ52
Arm length (mm): 441 to 691
Shaft length (mm): 441 to 691
Type: Slide type
Movable range (mm): R400 to R650
Compatible driver diameter (mm): 30 to 52
Maximum driver weight (kg): 1.0
NITTO DRA-SL-650
