Features
- This coupler allows you to easily and securely attach a blade hose without the need for a hose clamp.
- This series includes the "Hi Coupler" type and the Hi Coupler 200 type. A spring nut is also available to prevent the hose from bending.
- To attach to a hose, simply insert it into the nipple and tighten the nut.
- The outer circumference of the hose is tightened to prevent the hose from coming loose or fluid from leaking out.
- We also have a "rotary nut coupler" that uses a ball bearing swivel mechanism to prevent the hose from twisting and reduce strain on your hands.
Specifications in detail
High coupler Steel Nitrile rubber NBR (SG)
Valve structure: One-way opening and closing type
Hose can be attached without hose bands.
Spring nuts eliminate the worry of hose breakage.
Blade hose attachment is also available.
Mating hose size (mm): φ9 x φ15
Fluid used: Air
Mating hose thickness (mm): 3±0.3

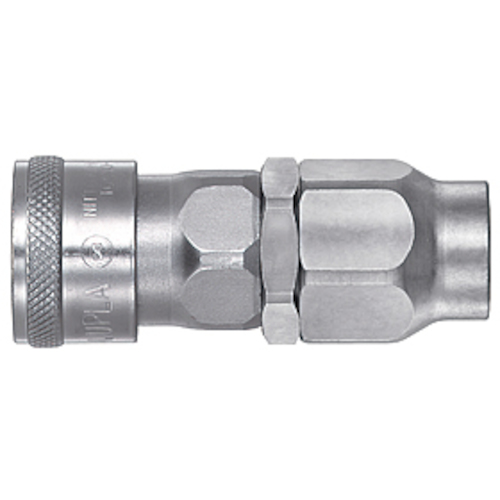

NITTO 90SN-BH STEEL NBR
