- This is a high-pressure coupler with a maximum operating pressure of 68.6 MPa and a pressure resistance of 98 MPa.
- The valve is a metal touch type that does not use rubber.
- Maximum operating pressure is 68.6MPa {700kgf/cm2}. This is a high pressure coupler with a pressure resistance of 98MPa {1,000kgf/cm2}.
- The valve is a metal-to-metal type that does not use rubber, providing excellent durability.
- Both the plug and socket have a built-in metal touch automatic opening and closing valve to prevent fluid leakage when separated.
- Dip molding caps are standard equipment.
Specifications in detail
Both ways open/close type
Valve structure: double-way open/close type
A high pressure coupler with a maximum operating pressure of 68.6 MPa and a pressure resistance of 98 MPa.
Pressure resistance (MPa): 98.0
Fluid used: Hydraulic oil
Operating temperature range (℃): -20 to 80
Maximum operating pressure (MPa): 68.6
Counterpart mounting size: R3/8
Counterpart mounting screw size: R 3/8

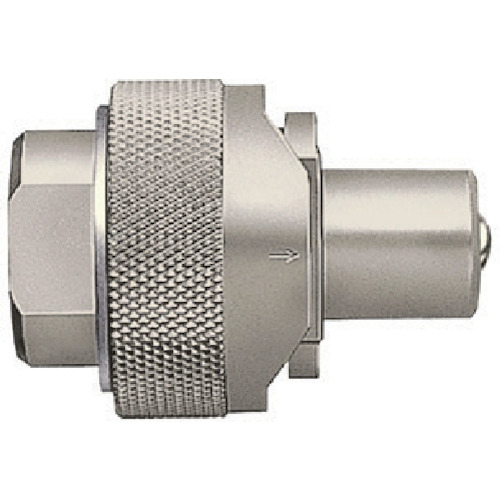

NITTO 700R-3P STEEL
