Thông tin sản phẩm
Operating temperature range: 0 to 60℃ (no freezing)
Maximum operating pressure: 1MPa
Using vacuum pressure: -100kPa
Applicable tube outer diameter (mm): 10
Connection size: R1/ 8
Hexagonal width across flats (mm): 17
Fluid temperature (℃): 0 to 60 (no freezing)
Total length (mm): 30.3
Fluid used: Air, water (conditions apply)
Applicable tube outer diameter D (mm): 10

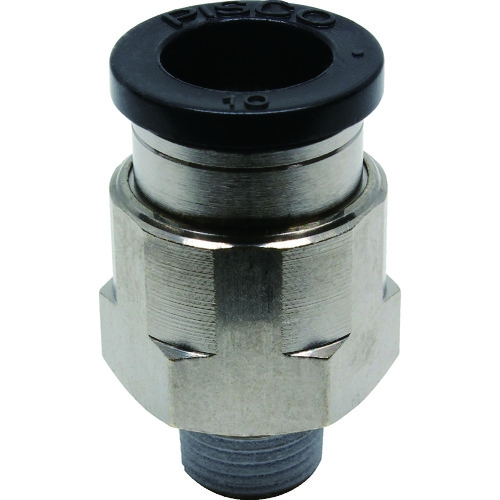

Nippon Pisco PC10-01
