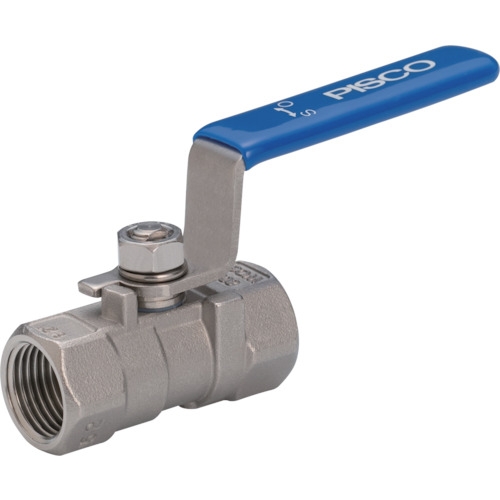

Nippon Pisco Việt Nam | Pisco stainless steel ball valve 1 piece type MW1144895

Thông tin sản phẩm

Maximum operating pressure: 5.5MPa (with caution)
Using vacuum pressure: -101kPa
Operating temperature range: -29 to 232℃ (no freezing of fluid)
Height (mm): 50.3
>Working pressure (MPa): 5.5 (with caution)
Working temperature range (℃): -29 to +232 (no freezing of fluid)
Port size: Rc3/8
Depth (mm) :92
Fluid used: Air, inert gas such as nitrogen/helium (non-toxic), water/liquid (conditions apply), Others (conditions apply)
Width (mm): 22.7

Nippon Pisco NSBVF10-03

Nippon Pisco Việt Nam | Pisco stainless steel ball valve 1 piece type MW1144895

Thương hiệu: Nippon Pisco

Liên hệ

SUS316 equivalent (SUS316 or CF8M) is used for the material of the wetted parts.
The handlebar has a fixed stem that does not come off.
Input and output can be mounted in either direction.
Cleaning specifications. (Cleaning with alkaline cleaning agent)

Maximum working pressure: 5.5MPa (with caution)
Using vacuum pressure: -101kPa
Using temperature range: -29 to 232℃ (no freezing of fluid)
Height (mm): 50.3
Operating pressure (MPa): 5.5 (with caution)
Operating temperature range (℃): -29 to +232 (no freezing of fluid)
Port size: Rc3/8
Depth (mm): 92
Fluids used: Air, inert gases such as nitrogen and helium (non-toxic), water and liquids (conditions apply) , Others (conditions apply)
Width (mm): 22.7
