• SUS316 equivalent (SUS316 or CF8M) is used for the material of the wetted parts.
• The handlebar has a fixed stem that does not come off.
• Input and output can be mounted in either direction.
• Cleaning specifications. (Cleaning with alkaline cleaning agent)

• Maximum working pressure: 5.5MPa (with caution)
• Using vacuum pressure: -101kPa
• Using temperature range: -29 to 232℃ (no freezing of fluid)
• Height (mm): 43.3
• Operating pressure (MPa): 5.5 (with caution)
• Operating temperature range (℃): -29 to +232 (no freezing of fluid)
• Port size: Rc1/4
• Depth (mm): 77.9
• Fluids used: Air, inert gases such as nitrogen and helium (non-toxic), water and liquids (conditions apply) , Others (conditions apply)
• Width (mm): 17.9

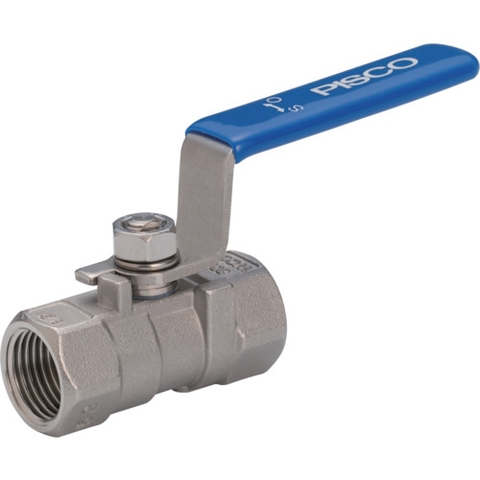

Nippon Pisco NSBVF10-02
