Features

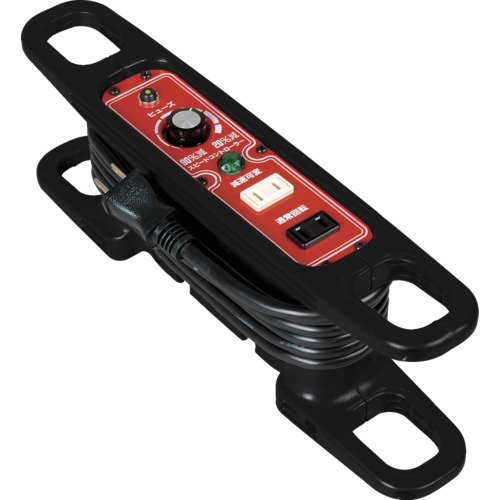

- This is a hand reel with speed control function.
- For brushed motors only. (20% to 90% reduction)
- Devices exceeding 15A cannot be used.
- For use only with equipment equipped with carbon brushes.
Applications
- For indoor work sites.
- Polishing, paint removal from cars, etc.
- For drilling holes with a hammer drill.
Specifications in detail
With power lamp With
circuit breaker
Indoor type
2P plug/outlet
Outlet: Variable deceleration x 1, normal rotation x 1
Color: Black
Wire type: VCTF
Wire specification length (m): 3
Wire specification thickness ((mm2)): 2.0
Wire specification number of cores (C): 2
Outlet specification rating: 2P 15A 125V
Outlet specification shape: (2-phase 2)
Outlet specification number: Variable deceleration x 1, normal rotation x 1
Wire color: Black
Wire specification thickness (mm[[*2]]): 3
Speed adjustment range (%): 20 to 90
reduction Rated current (A): 8
Body color: Black
NICHIDO SH-032
