Features

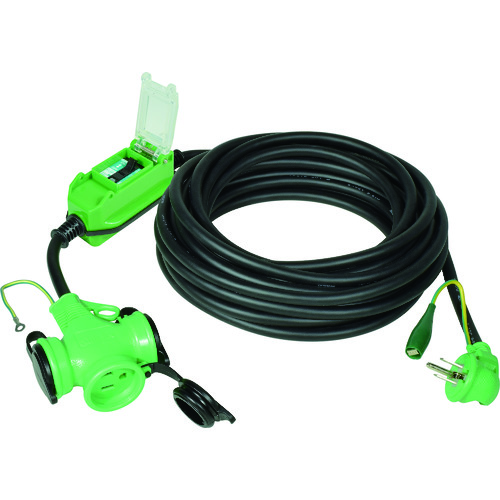

- Simply connect it to a drum, cord, or tool and it comes with a safe and secure earth leakage breaker.
- This is a rainproof three-port outlet that prevents dangerous electrical leakage accidents. (Earthed)
- There are three earthed 15A sockets with weatherproof caps.
- L Henna plug (compatible with 2-core and 3-core plugs)
Applications
- For sites where leakage current protection is mandatory.
- For when you want to provide leakage current protection to equipment that does not have such protection functions.
Specifications in detail
Wire type: SVCT
2-pole, 3-pole combination type (Pockin plug)
PSE mark product
Outdoor type
Operation time: Leakage current within 0.1 seconds
Rated voltage: AC100V
Breaker sensitivity: EK type 15A/15mA, EB type 15mA
Wire specification length (m): 10
Wire specification thickness ((mm2)): 2.0
Wire specification number of cores (C): 3
Outlet specification rating: 2P/15A with cap, with earth Outlet
specification shape: (3-phase 1)
Number of outlet specifications: 3
Leakage current protection: ○
Leakage current breaker specification: For leakage current ground fault protection only
NICHIDO PBWL-EB10-T
