Features
- Simply connect it to a drum, cord, or tool to provide a safe and secure earth leakage circuit breaker.
- Comes with 10m cable.
- In the event of a power leak, you can cut off the power to the equipment without tripping the main breaker.
- The breaker section has a built-in plug, so it can be used with both 2-core and 3-core outlets.
- Depending on the connection status, the main breaker may trip first.
Specifications in detail
Triple outlet (three outlets)
Indoor type
Operation time: Leakage current within 0.1 seconds
Overload and leakage current protection
Wire type: SVCT
Wire specification Length (m): 10
Wire specification Thickness ((mm2)): 2.0
Wire specification Number of cores (C): 3
Outlet specification Rating: 2P, 15A, 125V Earthed Outlet
specification Shape: (Three-phase 1)
Number of outlet specifications: 3
Leakage current protection: Yes
Overload protection: Yes
Earth leakage circuit breaker specification: Overload and leakage current protection

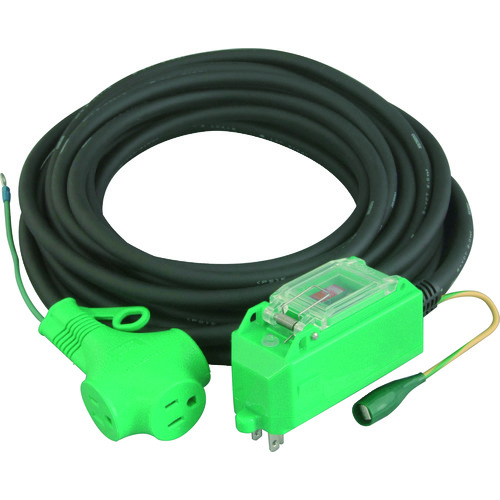

NICHIDO PIPB-EK10E
