| Mã đặt hàng | 553400.0060 | 553400.0150 | 553400.0250 | 553400.0350 | 553400.0400 | |
| Model | NEO150 | NEO300 | NEO600 | NEO 1200 | NEO 2000 | |
| Chiều dài | mm | 93 | 152 | 246 | 316 | 480 |
| Chiều rộng | mm | 60 | 100 | 120 | 148 | 165 |
| Tải trọng nâng tấm phẳng | kg | 150 | 300 | 600 | 1200 | 2000 |
| Tải trọng nâng vật tròn | kg | 65 | 150 | 300 | 600 | 1000 |
| Đường kính trục nâng Ømin/max | mm | 40/100 | 60/200 | 65/270 | 100/300 | 150/ 350 |
| Chiều cao tới móc treo | mm | 110 | 164 | 168 | 216 | 251 |
| Khối lượng | kg | 2.6 | 10 | 19 | 36 | 85 |

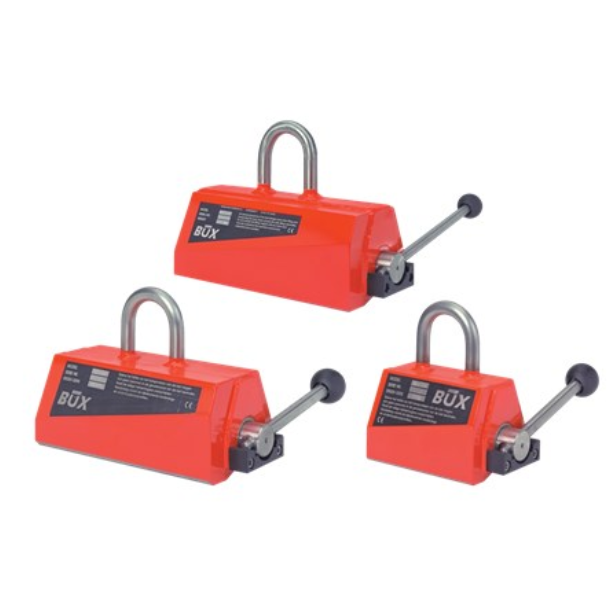

553400 Permanent lifting magnet BUX
For flat and round material,with neodymium magnets, extremely high carrying capacity,
tested safety, low-maintenance, low dead weight, with test certificate and operating instructions.
Available upon request:Lifting arm for swivelling the workpieces (retrofit part), battery and
electric permanent lifting magnets, pneumatically operated permanent magnets for special applications.
| Mã đặt hàng | 553400.0060 | 553400.0150 | 553400.0250 | 553400.0350 | 553400.0400 | |
| Model | NEO150 | NEO300 | NEO600 | NEO 1200 | NEO 2000 | |
| Chiều dài | mm | 93 | 152 | 246 | 316 | 480 |
| Chiều rộng | mm | 60 | 100 | 120 | 148 | 165 |
| Tải trọng nâng tấm phẳng | kg | 150 | 300 | 600 | 1200 | 2000 |
| Tải trọng nâng vật tròn | kg | 65 | 150 | 300 | 600 | 1000 |
| Đường kính trục nâng Ømin/max | mm | 40/100 | 60/200 | 65/270 | 100/300 | 150/ 350 |
| Chiều cao tới móc treo | mm | 110 | 164 | 168 | 216 | 251 |
| Khối lượng | kg | 2.6 | 10 | 19 | 36 | 85 |
553400 Permanent lifting magnet BUX
For flat and round material,with neodymium magnets, extremely high carrying capacity,
tested safety, low-maintenance, low dead weight, with test certificate and operating instructions.
Available upon request:Lifting arm for swivelling the workpieces (retrofit part), battery and
electric permanent lifting magnets, pneumatically operated permanent magnets for special applications.
