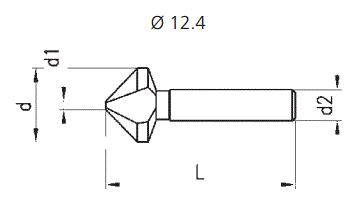

Mã đặt hàng | d | d1 | L | d2 | Mã đặt hàng | d | d1 | L | d2 |
mm | mm | mm | mm | mm | mm | mm | mm | ||
276150.0100 | 4.3 | 1.3 | 40 | 4 | 276150.1000 | 11.5 | 2.8 | 55 | 8 |
276150.0200 | 5 | 1.5 | 40 | 4 | 276150.1100 | 12.4 | 2.8 | 55 | 8 |
276150.0300 | 6 | 1.5 | 45 | 5 | 276150.1200 | 15 | 3.2 | 60 | 10 |
276150.0400 | 6.3 | 1.5 | 45 | 5 | 276150.1300 | 16.5 | 3.2 | 60 | 10 |
276150.0500 | 7 | 1.8 | 50 | 6 | 276150.1400 | 19 | 3.5 | 63 | 10 |
276150.0600 | 8 | 2 | 50 | 6 | 276150.1500 | 20.5 | 3.5 | 63 | 10 |
276150.0700 | 8.3 | 2 | 50 | 6 | 276150.1600 | 23 | 3.8 | 65 | 10 |
276150.0800 | 10 | 2.5 | 50 | 6 | 276150.1700 | 25 | 3.8 | 65 | 10 |
276150.0900 | 10.4 | 2.5 | 50 | 6 | 276150.1800 | 31 | 3.2 | 70 | 12 |
Mã đặt hàng | d | d1 | L | d2 | Mã đặt hàng | d | d1 | L | d2 |
mm | mm | mm | mm | mm | mm | mm | mm | ||
276150.0100 | 4.3 | 1.3 | 40 | 4 | 276150.1000 | 11.5 | 2.8 | 55 | 8 |
276150.0200 | 5 | 1.5 | 40 | 4 | 276150.1100 | 12.4 | 2.8 | 55 | 8 |
276150.0300 | 6 | 1.5 | 45 | 5 | 276150.1200 | 15 | 3.2 | 60 | 10 |
276150.0400 | 6.3 | 1.5 | 45 | 5 | 276150.1300 | 16.5 | 3.2 | 60 | 10 |
276150.0500 | 7 | 1.8 | 50 | 6 | 276150.1400 | 19 | 3.5 | 63 | 10 |
276150.0600 | 8 | 2 | 50 | 6 | 276150.1500 | 20.5 | 3.5 | 63 | 10 |
276150.0700 | 8.3 | 2 | 50 | 6 | 276150.1600 | 23 | 3.8 | 65 | 10 |
276150.0800 | 10 | 2.5 | 50 | 6 | 276150.1700 | 25 | 3.8 | 65 | 10 |
276150.0900 | 10.4 | 2.5 | 50 | 6 | 276150.1800 | 31 | 3.2 | 70 | 12 |
