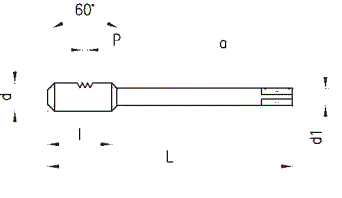

| Mã đặt hàng | d | P | l | L | d1 | a | Tiêu chuẩn DIN | Ø |
| mm | mm | mm | mm | mm | mm | |||
| 264185.0100 | M3 | 0.5 | 10 | 56 | 2.2 | - | 376 | 2.5 |
| 264185.0200 | M4 | 0.7 | 12 | 63 | 2.8 | 2.1 | 376 | 3.3 |
| 264185.0300 | M5 | 0.8 | 14 | 70 | 3.5 | 2.7 | 376 | 4.2 |
| 264185.0400 | M6 | 1 | 16 | 80 | 4.5 | 3.4 | 376 | 5 |
| 264185.0500 | M8 | 1.25 | 18 | 90 | 6 | 4.9 | 376 | 6.8 |
| 264185.0600 | M10 | 1.5 | 20 | 100 | 7 | 5.5 | 376 | 8.5 |
| 264185.0700 | M12 | 1.75 | 24 | 110 | 9 | 7 | 376 | 10.2 |
| 264185.0800 | M14 | 2 | 26 | 110 | 11 | 9 | 376 | 12 |
| 264185.0900 | M16 | 2 | 26 | 110 | 12 | 9 | 376 | 14 |
| 264185.1000 | M18 | 2.5 | 30 | 125 | 14 | 11 | 376 | 15.5 |
| 264185.1100 | M20 | 2.5 | 32 | 140 | 16 | 12 | 376 | 17.5 |
| 264185.1200 | M22 | 2.5 | 32 | 140 | 18 | 14.5 | 376 | 19.5 |
| 264185.1300 | M24 | 3 | 36 | 160 | 18 | 14.5 | 376 | 21 |
| 264185.1400 | M27 | 3 | 36 | 160 | 20 | 16 | 376 | 24 |
| 264185.1500 | M30 | 3.5 | 40 | 180 | 22 | 18 | 376 | 26.5 |
| 264185.1600 | M36 | 4 | 50 | 200 | 28 | 22 | 376 | 32 |
| Mã đặt hàng | d | P | l | L | d1 | a | Tiêu chuẩn DIN | Ø |
| mm | mm | mm | mm | mm | mm | |||
| 264185.0100 | M3 | 0.5 | 10 | 56 | 2.2 | - | 376 | 2.5 |
| 264185.0200 | M4 | 0.7 | 12 | 63 | 2.8 | 2.1 | 376 | 3.3 |
| 264185.0300 | M5 | 0.8 | 14 | 70 | 3.5 | 2.7 | 376 | 4.2 |
| 264185.0400 | M6 | 1 | 16 | 80 | 4.5 | 3.4 | 376 | 5 |
| 264185.0500 | M8 | 1.25 | 18 | 90 | 6 | 4.9 | 376 | 6.8 |
| 264185.0600 | M10 | 1.5 | 20 | 100 | 7 | 5.5 | 376 | 8.5 |
| 264185.0700 | M12 | 1.75 | 24 | 110 | 9 | 7 | 376 | 10.2 |
| 264185.0800 | M14 | 2 | 26 | 110 | 11 | 9 | 376 | 12 |
| 264185.0900 | M16 | 2 | 26 | 110 | 12 | 9 | 376 | 14 |
| 264185.1000 | M18 | 2.5 | 30 | 125 | 14 | 11 | 376 | 15.5 |
| 264185.1100 | M20 | 2.5 | 32 | 140 | 16 | 12 | 376 | 17.5 |
| 264185.1200 | M22 | 2.5 | 32 | 140 | 18 | 14.5 | 376 | 19.5 |
| 264185.1300 | M24 | 3 | 36 | 160 | 18 | 14.5 | 376 | 21 |
| 264185.1400 | M27 | 3 | 36 | 160 | 20 | 16 | 376 | 24 |
| 264185.1500 | M30 | 3.5 | 40 | 180 | 22 | 18 | 376 | 26.5 |
| 264185.1600 | M36 | 4 | 50 | 200 | 28 | 22 | 376 | 32 |
