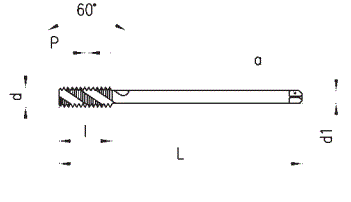

| Mã đặt hàng | d | P | Tiêu chuẩn DIN | L | l | d1 | a | Ø | Z |
| mm | mm | mm | mm | mm | mm | ||||
| 264395.0100 | MF8 | 1 | 374 | 90 | 12 | 6 | 4.9 | 7 | 3 |
| 264395.0200 | MF10 | 1.25 | 374 | 90 | 12 | 7 | 5.5 | 9 | 3 |
| 264395.0300 | MF10 | 1 | 374 | 90 | 14 | 7 | 5.5 | 8.8 | 3 |
| 264395.0400 | MF12 | 1.5 | 374 | 100 | 14 | 9 | 7 | 11 | 4 |
| 264395.0500 | MF12 | 1.25 | 374 | 100 | 14 | 9 | 7 | 10.8 | 4 |
| 264395.0600 | MF12 | 1 | 374 | 100 | 1516 | 9 | 7 | 10.5 | 4 |
| 264395.0700 | MF14 | 1.5 | 374 | 100 | 16 | 11 | 9 | 12.5 | 4 |
| 264395.0800 | MF16 | 1.5 | 374 | 100 | 12.5 | 12 | 9 | 14.5 | 4 |
| 264395.0900 | MF18 | 1.5 | 374 | 110 | 18 | 14 | 11 | 16.5 | 4 |
| 264395.1000 | MF20 | 1.5 | 374 | 125 | 18 | 16 | 12 | 18.5 | 4 |
| Mã đặt hàng | d | P | Tiêu chuẩn DIN | L | l | d1 | a | Ø | Z |
| mm | mm | mm | mm | mm | mm | ||||
| 264395.0100 | MF8 | 1 | 374 | 90 | 12 | 6 | 4.9 | 7 | 3 |
| 264395.0200 | MF10 | 1.25 | 374 | 90 | 12 | 7 | 5.5 | 9 | 3 |
| 264395.0300 | MF10 | 1 | 374 | 90 | 14 | 7 | 5.5 | 8.8 | 3 |
| 264395.0400 | MF12 | 1.5 | 374 | 100 | 14 | 9 | 7 | 11 | 4 |
| 264395.0500 | MF12 | 1.25 | 374 | 100 | 14 | 9 | 7 | 10.8 | 4 |
| 264395.0600 | MF12 | 1 | 374 | 100 | 1516 | 9 | 7 | 10.5 | 4 |
| 264395.0700 | MF14 | 1.5 | 374 | 100 | 16 | 11 | 9 | 12.5 | 4 |
| 264395.0800 | MF16 | 1.5 | 374 | 100 | 12.5 | 12 | 9 | 14.5 | 4 |
| 264395.0900 | MF18 | 1.5 | 374 | 110 | 18 | 14 | 11 | 16.5 | 4 |
| 264395.1000 | MF20 | 1.5 | 374 | 125 | 18 | 16 | 12 | 18.5 | 4 |
