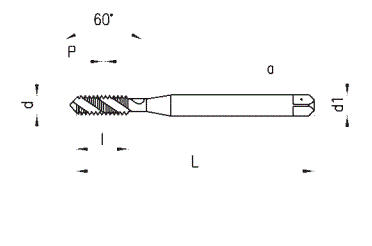

| Mã đặt hàng | d | P | Tiêu chuẩn DIN | L | l | d1 | a | Ø | Z |
| mm | mm | mm | mm | mm | mm | ||||
| 264105.0100 | M2 | 0.4 | 371 | 45 | 6 | 2.8 | 2.1 | 1.6 | 3 |
| 264105.0200 | M2.5 | 0.45 | 371 | 50 | 6.5 | 2.8 | 2.1 | 2.05 | 3 |
| 264105.0300 | M3 | 0.5 | 371 | 56 | 7 | 3.5 | 2.7 | 2.5 | 3 |
| 264105.0400 | M4 | 0.7 | 371 | 63 | 8.5 | 4.5 | 3.4 | 3.3 | 3 |
| 264105.0500 | M5 | 0.8 | 371 | 70 | 10 | 6 | 4.9 | 4.2 | 3 |
| 264105.0600 | M6 | 1 | 371 | 80 | 12 | 6 | 4.9 | 5 | 3 |
| 264105.0700 | M8 | 1.25 | 371 | 90 | 14 | 8 | 6.2 | 6.8 | 3 |
| 264105.0800 | M10 | 1.5 | 371 | 100 | 17 | 10 | 8 | 8.5 | 3 |
| 264105.0900 | M12 | 1.75 | 376 | 110 | 18 | 9 | 7 | 10.2 | 4 |
| 264105.1000 | M14 | 2 | 376 | 110 | 20.5 | 11 | 9 | 12 | 4 |
| 264105.1100 | M16 | 2 | 376 | 110 | 20.5 | 12 | 9 | 14 | 4 |
| 264105.1200 | M18 | 2.5 | 376 | 125 | 25.5 | 14 | 11 | 15.5 | 4 |
| 264105.1300 | M20 | 2.5 | 376 | 140 | 25.5 | 16 | 12 | 17.5 | 4 |
| 264105.1400 | M24 | 3 | 376 | 160 | 32 | 18 | 14.5 | 21 | 4 |
| Mã đặt hàng | d | P | Tiêu chuẩn DIN | L | l | d1 | a | Ø | Z |
| mm | mm | mm | mm | mm | mm | ||||
| 264105.0100 | M2 | 0.4 | 371 | 45 | 6 | 2.8 | 2.1 | 1.6 | 3 |
| 264105.0200 | M2.5 | 0.45 | 371 | 50 | 6.5 | 2.8 | 2.1 | 2.05 | 3 |
| 264105.0300 | M3 | 0.5 | 371 | 56 | 7 | 3.5 | 2.7 | 2.5 | 3 |
| 264105.0400 | M4 | 0.7 | 371 | 63 | 8.5 | 4.5 | 3.4 | 3.3 | 3 |
| 264105.0500 | M5 | 0.8 | 371 | 70 | 10 | 6 | 4.9 | 4.2 | 3 |
| 264105.0600 | M6 | 1 | 371 | 80 | 12 | 6 | 4.9 | 5 | 3 |
| 264105.0700 | M8 | 1.25 | 371 | 90 | 14 | 8 | 6.2 | 6.8 | 3 |
| 264105.0800 | M10 | 1.5 | 371 | 100 | 17 | 10 | 8 | 8.5 | 3 |
| 264105.0900 | M12 | 1.75 | 376 | 110 | 18 | 9 | 7 | 10.2 | 4 |
| 264105.1000 | M14 | 2 | 376 | 110 | 20.5 | 11 | 9 | 12 | 4 |
| 264105.1100 | M16 | 2 | 376 | 110 | 20.5 | 12 | 9 | 14 | 4 |
| 264105.1200 | M18 | 2.5 | 376 | 125 | 25.5 | 14 | 11 | 15.5 | 4 |
| 264105.1300 | M20 | 2.5 | 376 | 140 | 25.5 | 16 | 12 | 17.5 | 4 |
| 264105.1400 | M24 | 3 | 376 | 160 | 32 | 18 | 14.5 | 21 | 4 |
