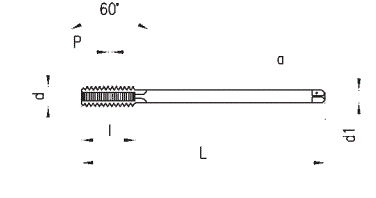

| Mã đặt hàng | d | P | Tiêu chuẩn DIN | L | l | d1 | a | Ø |
| mm | mm | mm | mm | mm | mm | |||
| 264400.0100 | MF4 | 0.5 | 374 | 63 | 8 | 2.8 | 2.1 | 3.5 |
| 264400.0200 | MF5 | 0.5 | 374 | 70 | 10 | 3.5 | 2.7 | 4.5 |
| 264400.0300 | MF6 | 0.5 | 374 | 80 | 13 | 4.5 | 3.4 | 5.5 |
| 264400.0400 | MF8 | 0.5 | 374 | 80 | 14 | 6 | 4.9 | 7.5 |
| 264400.0500 | MF8 | 0.75 | 374 | 80 | 14 | 6 | 4.9 | 7.25 |
| 264400.0600 | MF8 | 1 | 374 | 90 | 18 | 6 | 4.9 | 7 |
| 264400.0700 | MF10 | 1 | 374 | 90 | 18 | 7 | 5.5 | 9 |
| 264400.0800 | MF10 | 1.25 | 374 | 100 | 20 | 7 | 5.5 | 8.8 |
| 264400.0900 | MF12 | 1 | 374 | 100 | 20 | 9 | 7 | 11 |
| 264400.1000 | MF12 | 1.25 | 374 | 100 | 20 | 9 | 7 | 10.8 |
| 264400.1100 | MF12 | 1.5 | 374 | 100 | 20 | 9 | 7 | 10.5 |
| 264400.1200 | MF14 | 1 | 374 | 100 | 20 | 11 | 9 | 13 |
| 264400.1300 | MF14 | 1.5 | 374 | 100 | 20 | 11 | 9 | 12.5 |
| 264400.1400 | MF16 | 1.5 | 374 | 100 | 22 | 12 | 9 | 14.5 |
| 264400.1500 | MF18 | 1.5 | 374 | 110 | 25 | 14 | 11 | 16.5 |
| 264400.1600 | MF20 | 1.5 | 374 | 125 | 25 | 16 | 12 | 18.5 |
| Mã đặt hàng | d | P | Tiêu chuẩn DIN | L | l | d1 | a | Ø |
| mm | mm | mm | mm | mm | mm | |||
| 264400.0100 | MF4 | 0.5 | 374 | 63 | 8 | 2.8 | 2.1 | 3.5 |
| 264400.0200 | MF5 | 0.5 | 374 | 70 | 10 | 3.5 | 2.7 | 4.5 |
| 264400.0300 | MF6 | 0.5 | 374 | 80 | 13 | 4.5 | 3.4 | 5.5 |
| 264400.0400 | MF8 | 0.5 | 374 | 80 | 14 | 6 | 4.9 | 7.5 |
| 264400.0500 | MF8 | 0.75 | 374 | 80 | 14 | 6 | 4.9 | 7.25 |
| 264400.0600 | MF8 | 1 | 374 | 90 | 18 | 6 | 4.9 | 7 |
| 264400.0700 | MF10 | 1 | 374 | 90 | 18 | 7 | 5.5 | 9 |
| 264400.0800 | MF10 | 1.25 | 374 | 100 | 20 | 7 | 5.5 | 8.8 |
| 264400.0900 | MF12 | 1 | 374 | 100 | 20 | 9 | 7 | 11 |
| 264400.1000 | MF12 | 1.25 | 374 | 100 | 20 | 9 | 7 | 10.8 |
| 264400.1100 | MF12 | 1.5 | 374 | 100 | 20 | 9 | 7 | 10.5 |
| 264400.1200 | MF14 | 1 | 374 | 100 | 20 | 11 | 9 | 13 |
| 264400.1300 | MF14 | 1.5 | 374 | 100 | 20 | 11 | 9 | 12.5 |
| 264400.1400 | MF16 | 1.5 | 374 | 100 | 22 | 12 | 9 | 14.5 |
| 264400.1500 | MF18 | 1.5 | 374 | 110 | 25 | 14 | 11 | 16.5 |
| 264400.1600 | MF20 | 1.5 | 374 | 125 | 25 | 16 | 12 | 18.5 |
