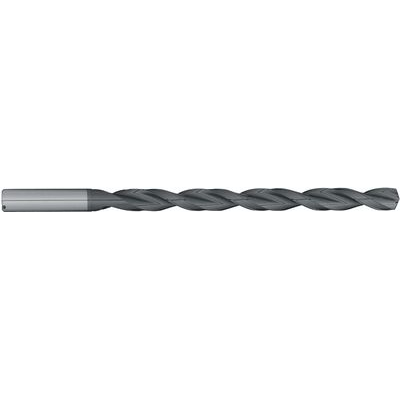

Mũi khoan Solid Carbide FUTURO kiểu 12xD -# 255600

Mũi khoan Solid Carbide FUTURO kiểu 12xD -# 255600

Thông tin sản phẩm

Mã đăng nhập	d1	l2	l1	d2	l3	Mã đăng nhập	d1	l2	l1	d2	l3	Mã đăng nhập	d1	l2	l1	d2	l3
	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm		mm	mm	mm	mm	mm
255600.0030	3	50	90	6	36	255600.0530	6.3	108	146	8	36	255600.1260	9.6	120	162	10	40
255600.0031	3.1	50	90	6	36	255600.0540	6.4	108	146	8	36	255600.1270	9.7	120	162	10	40
255600.0032	3.2	50	90	6	36	255600.0600	6.5	108	146	8	36	255600.1280	9.8	120	162	10	40
255600.0033	3.3	50	90	6	36	255600.0660	6.6	108	146	8	36	255600.1290	9.9	120	162	10	40
255600.0034	3.4	50	90	6	36	255600.0670	6.7	108	146	8	36	255600.1300	10	120	162	10	40
255600.0035	3.5	50	90	6	36	255600.0680	6.8	108	146	8	36	255600.1310	10.1	156	204	12	45
255600.0036	3.6	50	90	6	36	255600.0690	6.9	108	146	8	36	255600.1320	10.2	156	204	12	45
255600.0037	3.7	50	90	6	36	255600.0700	7	108	146	8	36	255600.1330	10.3	156	204	12	45
255600.0038	3.8	64	102	6	36	255600.0710	7.1	108	146	8	36	255600.1400	10.5	156	204	12	45
255600.0039	3.9	64	102	6	36	255600.0720	7.2	108	146	8	36	255600.1460	10.6	156	204	12	45
255600.0100	4	64	102	6	36	255600.0730	7.3	108	146	8	36	255600.1470	10.7	156	204	12	45
255600.0110	4.1	64	102	6	36	255600.0740	7.4	108	146	8	36	255600.1480	10.8	156	204	12	45
255600.0120	4.2	64	102	6	36	255600.0800	7.5	108	146	8	36	255600.1490	10.9	156	204	12	45
255600.0130	4.3	64	102	6	36	255600.0860	7.6	108	146	8	36	255600.1500	11	156	204	12	45
255600.0140	4.4	64	102	6	36	255600.0870	7.7	108	146	8	36	255600.1600	11.5	156	204	12	45
255600.0200	4.5	64	102	6	36	255600.0880	7.8	108	146	8	36	255600.1700	12	156	204	12	45
255600.0260	4.6	64	102	6	36	255600.0890	7.9	108	146	8	36	255600.1710	12.5	230	182	14	45
255600.0270	4.7	64	102	6	36	255600.0900	8	108	146	8	36	255600.1720	12.7	230	182	14	45
255600.0280	4.8	78	116	6	36	255600.0910	8.1	120	162	10	40	255600.1730	13	230	182	14	45
255600.0290	4.9	78	116	6	36	255600.0920	8.2	120	162	10	40	255600.1740	13.5	230	182	14	45
255600.0300	5	78	116	6	36	255600.0930	8.3	120	162	10	40	255600.1750	14	230	182	14	45
255600.0310	5.1	78	116	6	36	255600.0940	8.4	120	162	10	40	255600.1760	14.5	260	208	16	48
255600.0320	5.2	78	116	6	36	255600.1000	8.5	120	162	10	40	255600.1770	15	260	208	16	48
255600.0330	5.3	78	116	6	36	255600.1060	8.6	120	162	10	40	255600.1780	15.5	260	208	16	48
255600.0340	5.4	78	116	6	36	255600.1070	8.7	120	162	10	40	255600.1790	16	260	208	16	48
255600.0400	5.5	78	116	6	36	255600.1080	8.8	120	162	10	40	255600.1800	16.5	285	234	18	48
255600.0460	5.6	78	116	6	36	255600.1090	8.9	120	162	10	40	255600.1810	17	285	234	18	48
255600.0470	5.7	78	116	6	36	255600.1100	9	120	162	10	40	255600.1820	17.5	285	234	18	48
255600.0480	5.8	78	116	6	36	255600.1110	9.1	120	162	10	40	255600.1830	18	285	234	18	48
255600.0490	5.9	78	116	6	36	255600.1120	9.2	120	162	10	40	255600.1840	18.5	310	258	20	50
255600.0500	6	78	116	6	36	255600.1130	9.3	120	162	10	40	255600.1850	19	310	258	20	50
255600.0510	6.1	108	146	8	36	255600.1140	9.4	120	162	10	40	255600.1860	19.5	310	258	20	50
255600.0520	6.2	108	146	8	36	255600.1200	9.5	120	162	10	40	255600.1870	20	310	258	20	50

Catalog

Dowload catalog

Xem thêm Thu gọn

Mũi khoan Solid Carbide FUTURO kiểu 12xD -# 255600

Thương hiệu: FUTURO

Liên hệ
