Mũi khoan HSS FUTURO kiểu W -# 254040

Mũi khoan HSS FUTURO kiểu W -# 254040

Thông tin sản phẩm

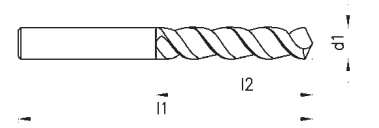

Mã đặt hàng	d1	l2	l1	Mã đặt hàng	d1	l2	l1	Mã đặt hàng	d1	l2	l1	Mã đặt hàng	d1	l2	l1
	mm	mm	mm		mm	mm	mm		mm	mm	mm		mm	mm	mm
254040.0010	0.5	6	22	254040.0270	3.1	36	65	254040.0530	5.7	57	93	254040.0790	8.3	75	117
254040.0020	0.6	7	24	254040.0280	3.2	36	65	254040.0540	5.8	57	93	254040.0800	8.4	75	117
254040.0030	0.7	9	28	254040.0290	3.3	36	65	254040.0550	5.9	57	93	254040.0810	8.5	75	117
254040.0040	0.8	10	30	254040.0300	3.4	39	70	254040.0560	6	57	93	254040.0820	8.6	81	125
254040.0050	0.9	11	32	254040.0310	3.5	39	70	254040.0570	6.1	63	101	254040.0830	8.7	81	125
254040.0060	1	12	34	254040.0320	3.6	39	70	254040.0580	6.2	63	101	254040.0840	8.8	81	125
254040.0070	1.1	14	36	254040.0330	3.7	39	70	254040.0590	6.3	63	101	254040.0850	8.9	81	125
254040.0080	1.2	16	38	254040.0340	3.8	43	75	254040.0600	6.4	63	101	254040.0860	9	81	125
254040.0090	1.3	16	38	254040.0350	3.9	43	75	254040.0610	6.5	63	101	254040.0870	9.1	81	125
254040.0100	1.4	18	40	254040.0360	4	43	75	254040.0620	6.6	63	101	254040.0880	9.2	81	125
254040.0110	1.5	18	40	254040.0370	4.1	43	75	254040.0630	6.7	63	101	254040.0890	9.3	81	125
254040.0120	1.6	20	43	254040.0380	4.2	43	75	254040.0640	6.8	69	109	254040.0900	9.4	81	125
254040.0130	1.7	20	43	254040.0390	4.3	47	80	254040.0650	6.9	69	109	254040.0910	9.5	81	125
254040.0140	1.8	22	46	254040.0400	4.4	47	80	254040.0660	7	69	109	254040.0920	9.6	87	133
254040.0150	1.9	22	46	254040.0410	4.5	47	80	254040.0670	7.1	69	109	254040.0930	9.7	87	133
254040.0160	2	24	49	254040.0420	4.6	47	80	254040.0680	7.2	69	109	254040.0940	9.8	87	133
254040.0170	2.1	24	49	254040.0430	4.7	47	80	254040.0690	7.3	69	109	254040.0950	9.9	87	133
254040.0180	2.2	27	53	254040.0440	4.8	52	86	254040.0700	7.4	69	109	254040.0960	10	87	133
254040.0190	2.3	27	53	254040.0450	4.9	52	86	254040.0710	7.5	69	109	254040.0970	10.2	87	133
254040.0200	2.4	30	57	254040.0460	5	52	86	254040.0720	7.6	75	117	254040.0980	10.5	87	133
254040.0210	2.5	30	57	254040.0470	5.1	52	86	254040.0730	7.7	75	117	254040.0990	11	94	142
254040.0220	2.6	30	57	254040.0480	5.2	52	86	254040.0740	7.8	75	117	254040.1000	11.5	94	142
254040.0230	2.7	33	61	254040.0490	5.3	52	86	254040.0750	7.9	75	117	254040.1010	12	101	151
254040.0240	2.8	33	61	254040.0500	5.4	57	93	254040.0760	8	75	117
254040.0250	2.9	33	61	254040.0510	5.5	57	93	254040.0770	8.1	75	117
254040.0260	3	33	61	254040.0520	5.6	57	93	254040.0780	8.2	75	117

Catalog

Dowload catalog

Xem thêm Thu gọn

Mũi khoan HSS FUTURO kiểu W -# 254040

Thương hiệu: FUTURO

Liên hệ
