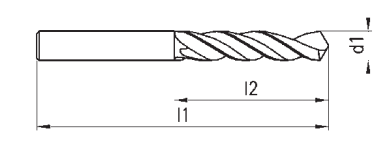

| Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 254200.0100 | 1 | 6 | 26 | 254200.2200 | 3.1 | 18 | 49 | 254200.4300 | 5.2 | 26 | 62 | 254200.6400 | 10.2 | 43 | 89 |
| 254200.0200 | 1.1 | 7 | 28 | 254200.2300 | 3.2 | 18 | 49 | 254200.4400 | 5.3 | 26 | 62 | 254200.6500 | 10.5 | 43 | 89 |
| 254200.0300 | 1.2 | 8 | 30 | 254200.2400 | 3.3 | 18 | 49 | 254200.4500 | 5.4 | 28 | 66 | 254200.6600 | 10.8 | 47 | 95 |
| 254200.0400 | 1.3 | 8 | 30 | 254200.2500 | 3.4 | 20 | 52 | 254200.4600 | 5.5 | 28 | 66 | 254200.6700 | 11 | 47 | 95 |
| 254200.0500 | 1.4 | 9 | 32 | 254200.2600 | 3.5 | 20 | 52 | 254200.4700 | 5.6 | 28 | 66 | 254200.6800 | 11.2 | 47 | 95 |
| 254200.0600 | 1.5 | 9 | 32 | 254200.2700 | 3.6 | 20 | 52 | 254200.4800 | 5.7 | 28 | 66 | 254200.6900 | 11.5 | 47 | 95 |
| 254200.0700 | 1.6 | 10 | 34 | 254200.2800 | 3.7 | 20 | 52 | 254200.4900 | 5.8 | 28 | 66 | 254200.7000 | 11.8 | 47 | 95 |
| 254200.0800 | 1.7 | 10 | 34 | 254200.2900 | 3.8 | 22 | 55 | 254200.5000 | 5.9 | 28 | 66 | 254200.7100 | 12 | 51 | 102 |
| 254200.0900 | 1.8 | 11 | 36 | 254200.3000 | 3.9 | 22 | 55 | 254200.5100 | 6 | 28 | 66 | 254200.7200 | 12.2 | 51 | 102 |
| 254200.1000 | 1.9 | 11 | 36 | 254200.3100 | 4 | 22 | 55 | 254200.5200 | 6.5 | 31 | 70 | 254200.7300 | 12.5 | 51 | 102 |
| 254200.1100 | 2 | 12 | 38 | 254200.3200 | 4.1 | 22 | 55 | 254200.5300 | 6.8 | 34 | 74 | 254200.7400 | 13 | 51 | 102 |
| 254200.1200 | 2.1 | 12 | 38 | 254200.3300 | 4.2 | 22 | 55 | 254200.5400 | 7 | 34 | 74 | 254200.7500 | 13.5 | 54 | 107 |
| 254200.1300 | 2.2 | 13 | 40 | 254200.3400 | 4.3 | 24 | 58 | 254200.5500 | 7.5 | 34 | 74 | 254200.7600 | 14 | 54 | 107 |
| 254200.1400 | 2.3 | 13 | 40 | 254200.3500 | 4.4 | 24 | 58 | 254200.5600 | 7.8 | 37 | 79 | 254200.7700 | 14.5 | 56 | 111 |
| 254200.1500 | 2.4 | 14 | 43 | 254200.3600 | 4.5 | 24 | 58 | 254200.5700 | 8 | 37 | 79 | 254200.7800 | 15 | 56 | 111 |
| 254200.1600 | 2.5 | 14 | 43 | 254200.3700 | 4.6 | 24 | 58 | 254200.5800 | 8.5 | 37 | 79 | 254200.7900 | 15.5 | 58 | 115 |
| 254200.1700 | 2.6 | 14 | 43 | 254200.3800 | 4.7 | 24 | 58 | 254200.5900 | 8.8 | 40 | 84 | 254200.8000 | 16 | 58 | 115 |
| 254200.1800 | 2.7 | 16 | 46 | 254200.3900 | 4.8 | 26 | 62 | 254200.6000 | 9 | 40 | 84 | 254200.8100 | 17 | 60 | 119 |
| 254200.1900 | 2.8 | 16 | 46 | 254200.4000 | 4.9 | 26 | 62 | 254200.6100 | 9.5 | 40 | 84 | 254200.8200 | 18 | 62 | 123 |
| 254200.2000 | 2.9 | 16 | 46 | 254200.4100 | 5 | 26 | 62 | 254200.6200 | 9.8 | 43 | 89 | 254200.8300 | 19 | 64 | 127 |
| 254200.2100 | 3 | 16 | 46 | 254200.4200 | 5.1 | 26 | 62 | 254200.6300 | 10 | 43 | 89 | 254200.8400 | 20 | 66 | 131 |
| Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 | Mã đặt hàng | d1 | l2 | l1 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 254200.0100 | 1 | 6 | 26 | 254200.2200 | 3.1 | 18 | 49 | 254200.4300 | 5.2 | 26 | 62 | 254200.6400 | 10.2 | 43 | 89 |
| 254200.0200 | 1.1 | 7 | 28 | 254200.2300 | 3.2 | 18 | 49 | 254200.4400 | 5.3 | 26 | 62 | 254200.6500 | 10.5 | 43 | 89 |
| 254200.0300 | 1.2 | 8 | 30 | 254200.2400 | 3.3 | 18 | 49 | 254200.4500 | 5.4 | 28 | 66 | 254200.6600 | 10.8 | 47 | 95 |
| 254200.0400 | 1.3 | 8 | 30 | 254200.2500 | 3.4 | 20 | 52 | 254200.4600 | 5.5 | 28 | 66 | 254200.6700 | 11 | 47 | 95 |
| 254200.0500 | 1.4 | 9 | 32 | 254200.2600 | 3.5 | 20 | 52 | 254200.4700 | 5.6 | 28 | 66 | 254200.6800 | 11.2 | 47 | 95 |
| 254200.0600 | 1.5 | 9 | 32 | 254200.2700 | 3.6 | 20 | 52 | 254200.4800 | 5.7 | 28 | 66 | 254200.6900 | 11.5 | 47 | 95 |
| 254200.0700 | 1.6 | 10 | 34 | 254200.2800 | 3.7 | 20 | 52 | 254200.4900 | 5.8 | 28 | 66 | 254200.7000 | 11.8 | 47 | 95 |
| 254200.0800 | 1.7 | 10 | 34 | 254200.2900 | 3.8 | 22 | 55 | 254200.5000 | 5.9 | 28 | 66 | 254200.7100 | 12 | 51 | 102 |
| 254200.0900 | 1.8 | 11 | 36 | 254200.3000 | 3.9 | 22 | 55 | 254200.5100 | 6 | 28 | 66 | 254200.7200 | 12.2 | 51 | 102 |
| 254200.1000 | 1.9 | 11 | 36 | 254200.3100 | 4 | 22 | 55 | 254200.5200 | 6.5 | 31 | 70 | 254200.7300 | 12.5 | 51 | 102 |
| 254200.1100 | 2 | 12 | 38 | 254200.3200 | 4.1 | 22 | 55 | 254200.5300 | 6.8 | 34 | 74 | 254200.7400 | 13 | 51 | 102 |
| 254200.1200 | 2.1 | 12 | 38 | 254200.3300 | 4.2 | 22 | 55 | 254200.5400 | 7 | 34 | 74 | 254200.7500 | 13.5 | 54 | 107 |
| 254200.1300 | 2.2 | 13 | 40 | 254200.3400 | 4.3 | 24 | 58 | 254200.5500 | 7.5 | 34 | 74 | 254200.7600 | 14 | 54 | 107 |
| 254200.1400 | 2.3 | 13 | 40 | 254200.3500 | 4.4 | 24 | 58 | 254200.5600 | 7.8 | 37 | 79 | 254200.7700 | 14.5 | 56 | 111 |
| 254200.1500 | 2.4 | 14 | 43 | 254200.3600 | 4.5 | 24 | 58 | 254200.5700 | 8 | 37 | 79 | 254200.7800 | 15 | 56 | 111 |
| 254200.1600 | 2.5 | 14 | 43 | 254200.3700 | 4.6 | 24 | 58 | 254200.5800 | 8.5 | 37 | 79 | 254200.7900 | 15.5 | 58 | 115 |
| 254200.1700 | 2.6 | 14 | 43 | 254200.3800 | 4.7 | 24 | 58 | 254200.5900 | 8.8 | 40 | 84 | 254200.8000 | 16 | 58 | 115 |
| 254200.1800 | 2.7 | 16 | 46 | 254200.3900 | 4.8 | 26 | 62 | 254200.6000 | 9 | 40 | 84 | 254200.8100 | 17 | 60 | 119 |
| 254200.1900 | 2.8 | 16 | 46 | 254200.4000 | 4.9 | 26 | 62 | 254200.6100 | 9.5 | 40 | 84 | 254200.8200 | 18 | 62 | 123 |
| 254200.2000 | 2.9 | 16 | 46 | 254200.4100 | 5 | 26 | 62 | 254200.6200 | 9.8 | 43 | 89 | 254200.8300 | 19 | 64 | 127 |
| 254200.2100 | 3 | 16 | 46 | 254200.4200 | 5.1 | 26 | 62 | 254200.6300 | 10 | 43 | 89 | 254200.8400 | 20 | 66 | 131 |
