Mũi khoan HSS FUTURO kiểu H -# 254060

Mũi khoan HSS FUTURO kiểu H -# 254060

Thông tin sản phẩm

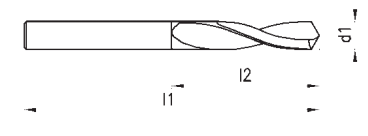

Mã đặt hàng	d1	l2	l1	Mã đặt hàng	d1	l2	l1	Mã đặt hàng	d1	l2	l1	Mã đặt hàng	d1	l2	l1
	mm	mm	mm		mm	mm	mm		mm	mm	mm		mm	mm	mm
254060.0010	0.5	6	22	254060.0270	3.1	36	65	254060.0530	5.7	57	93	254060.0790	8.3	75	117
254060.0020	0.6	7	24	254060.0280	3.2	36	65	254060.0540	5.8	57	93	254060.0800	8.4	75	117
254060.0030	0.7	9	28	254060.0290	3.3	36	65	254060.0550	5.9	57	93	254060.0810	8.5	75	117
254060.0040	0.8	10	30	254060.0300	3.4	39	70	254060.0560	6	57	93	254060.0820	8.6	81	125
254060.0050	0.9	11	32	254060.0310	3.5	39	70	254060.0570	6.1	63	101	254060.0830	8.7	81	125
254060.0060	1	12	34	254060.0320	3.6	39	70	254060.0580	6.2	63	101	254060.0840	8.8	81	125
254060.0070	1.1	14	36	254060.0330	3.7	39	70	254060.0590	6.3	63	101	254060.0850	8.9	81	125
254060.0080	1.2	16	38	254060.0340	3.8	43	75	254060.0600	6.4	63	101	254060.0860	9	81	125
254060.0090	1.3	16	38	254060.0350	3.9	43	75	254060.0610	6.5	63	101	254060.0870	9.1	81	125
254060.0100	1.4	18	40	254060.0360	4	43	75	254060.0620	6.6	63	101	254060.0880	9.2	81	125
254060.0110	1.5	18	40	254060.0370	4.1	43	75	254060.0630	6.7	63	101	254060.0890	9.3	81	125
254060.0120	1.6	20	43	254060.0380	4.2	43	75	254060.0640	6.8	69	109	254060.0900	9.4	81	125
254060.0130	1.7	20	43	254060.0390	4.3	47	80	254060.0650	6.9	69	109	254060.0910	9.5	81	125
254060.0140	1.8	22	46	254060.0400	4.4	47	80	254060.0660	7	69	109	254060.0920	9.6	87	133
254060.0150	1.9	22	46	254060.0410	4.5	47	80	254060.0670	7.1	69	109	254060.0930	9.7	87	133
254060.0160	2	24	49	254060.0420	4.6	47	80	254060.0680	7.2	69	109	254060.0940	9.8	87	133
254060.0170	2.1	24	49	254060.0430	4.7	47	80	254060.0690	7.3	69	109	254060.0950	9.9	87	133
254060.0180	2.2	27	53	254060.0440	4.8	52	86	254060.0700	7.4	69	109	254060.0960	10	87	133
254060.0190	2.3	27	53	254060.0450	4.9	52	86	254060.0710	7.5	69	109	254060.0970	10.2	87	133
254060.0200	2.4	30	57	254060.0460	5	52	86	254060.0720	7.6	75	117	254060.0980	10.5	87	133
254060.0210	2.5	30	57	254060.0470	5.1	52	86	254060.0730	7.7	75	117	254060.0990	11	94	142
254060.0220	2.6	30	57	254060.0480	5.2	52	86	254060.0740	7.8	75	117	254060.1000	11.5	94	142
254060.0230	2.7	33	61	254060.0490	5.3	52	86	254060.0750	7.9	75	117	254060.1010	12	101	151
254060.0240	2.8	33	61	254060.0500	5.4	57	93	254060.0760	8	75	117
254060.0250	2.9	33	61	254060.0510	5.5	57	93	254060.0770	8.1	75	117
254060.0260	3	33	61	254060.0520	5.6	57	93	254060.0780	8.2	75	117
