Mã đặt hàng | 148200.0100 | 148200.0200 | |
Dải đo | µm | 0...350 | 0...350 |
Độ phân giải | µm | 0.001 | 0.001 |
Feeder length | mm | 15 | 15 |
Probe sections | mm | 1.5/4.8/15 | 1.5/4.8/15 |
Lực đo | mN | 0.5 | 0.5 |
Khối lượng | kg | 2.3 | 2.3 |

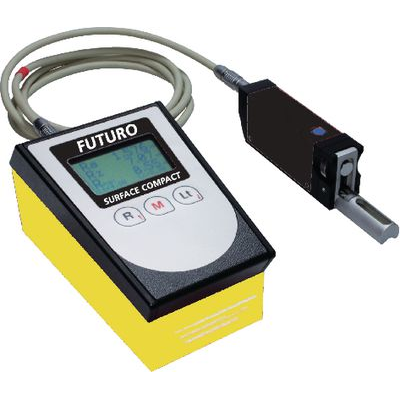

SwissMade- Compact roughness tester with skid and skidless tracer for shop and inspection
room. The display unit features a graphical display screen and four function keys. The drive unit is
integrated into the device, but can also be connected to the device with a connecting cable.
Designs:
148200.0100: Drive unit VH for tracer with skid
148200.0200: Drive unit VHF for tracer with skid + skidless tracer
Features:
Cut-off (filter) permanently assigned to the traversing length
1 traversing length can be selected, 3 permanently set traversing lengths 0.5...15 mm
Memory for 15 measurement profiles
Automatic calibration
Data output USB
Battery pack for mobile use
Parameters:
ISO/DIN: Ra, Rz(DIN), Rmax, R3z, Rt,Rq (RMS), Rk, Rp, Rv, Rpk, Rvk, MR1, MR2, Rpc, C1, C2, contact ratio Rmr, C0, Cz
JIS: Ra (JIS), Rz (JIS)
ISO 12085:R, AR, Rx
Note:
We recommend training for first-time users For further technical information, please ask
for a special brochure or for advice.
Package contents:
Delivered in case including:
Standard tracer SH - diamond 5 µm / 90°
Calibration comparator Ra = 3 µm
Adapter with connecting cable
USB connection cable, power supply unit
Operating manual, test certificate
Software DIASOFT BASIC
Basic program with Ra, Rq, Rv, Rp, Rt, Sm, Rsk, Rku, Rz, RTp, RHTp, RDq, RPc, roughness curve,
Abbott curve
Appropriate accessories:
148235 Accessories
148230 Software
148120 Roughness standard
