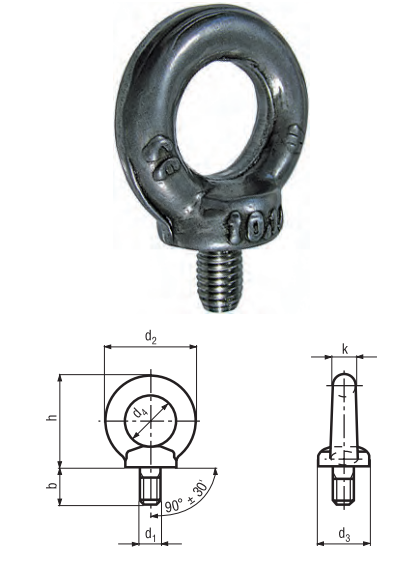

Mã đặt hàng | d1 | h | b | d2 | d3 | d4 | k | Packaging |
mm | mm | mm | mm | mm | mm | |||
862118.0100 | M8 | 36 | 13 | 36 | 20 | 20 | 8 | 1 |
862118.0200 | M10 | 45 | 17 | 45 | 25 | 25 | 10 | 1 |
862118.0300 | M12 | 53 | 20.5 | 54 | 30 | 30 | 12 | 1 |
862118.0400 | M16 | 62 | 27 | 63 | 35 | 35 | 14 | 1 |
862118.0500 | M20 | 71 | 30 | 72 | 40 | 40 | 16 | 1 |
862118.0600 | M24 | 90 | 36 | 90 | 50 | 50 | 20 | 1 |
862118.0700 | M30 | 109 | 45 | 108 | 65 | 60 | 24 | 1 |

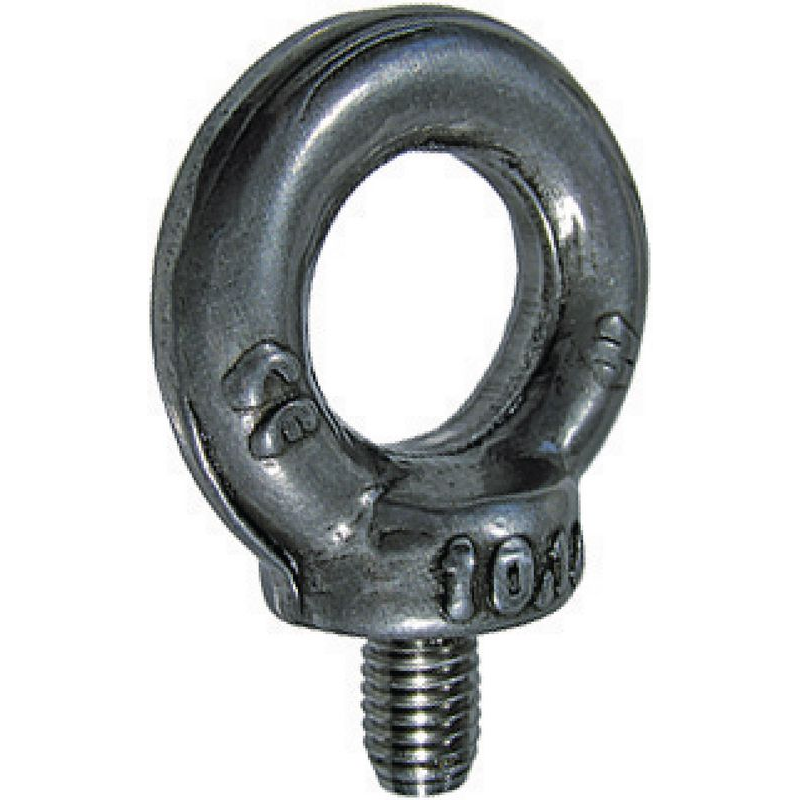

Hoist rings M8 - M30 BRW - # 862118
