| Mã đặt hàng | 575160.0100 | 575160.0200 | 575160.0300 | |
| Model | LSA 80 | LSA 80 | LSB 44 D | |
| Tốc độ không tải | min-1 | 80000 | 80 000 | 44000 |
| Công suất | W | 75 | 75 | 250 |
| HM rotary cutter Ø | mm | 4 | 4 | 8 |
| Kích cỡ bầu kẹp Ø | mm | 6 | 6 | 10 |
| Collet chuck type/Ø | mm | SPZ 3 | SPZ 3 | ZG 7-6 |
| Độ ồn | dB(A) | 82 | 76 | 72 |
| Mức tiêu thụ khí | l/min | 200 | 200 | 520 |
| Đầu kết nối | in | R1/8“ | R1/8“ | R1/4“ |
| Øxlength | mm | 5..6 | 5...6 | 8 |
| Trọng lượng | kg | 0.16 | 0.31 | 0.34 |
| Mã đặt hàng | 575160.0350 | 575160.0400 | 575160.0500 | |
| Model | LSB44E-D | LSB35DH | LSB20DH | |
| Tốc độ không tải | min-1 | 44000 | 35000 | 20000 |
| Công suất | W | 220 | 220 | 270 |
| HM rotary cutterØ | mm | 8 | 9 | 15 |
| Kích cỡ bầu kẹp Ø | mm | 10 | 16 | 30 |
| Collet chuck type/Ø | mm | ZG7-6 | ZG7-6 | ZG7-6 |
| Độ ồn | dB(A) | 72 | 78 | 81 |
| Mức tiêu thụ khí | l/min | 520 | 520 | 590 |
| Đầu kết nối | in | R1/4“ | R1/4“ | R1/4“ |
| Chiều rộng lỗ | mm | 10 | 8 | 8 |
| Trọng lượng | kg | 0.340 | 0.29 | 0.42 |
575160 - Air die grinder SUHNER
light, handy, powerful, for milling, grinding, engraving and polishing work, rugged and long life, not oil-free.

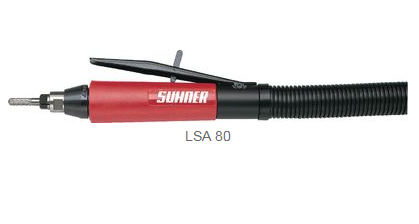

Type LSA 80 for fie machining, air exhaust at front for clean and shiny work surfaces, sliding valve (without hose)

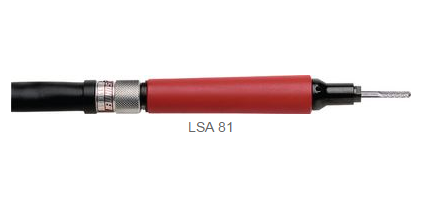

Type LSA 81 for fie machining, air exhaust at the rear, sliding valve, with sound insulation integrated into the hose

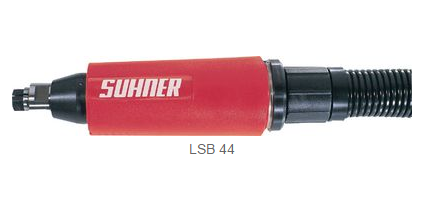

Type LSB 44 for tough use in toolmaking; air exhaust at the rear with sound insulation integrated into the hose, with rotary/lever combi valve

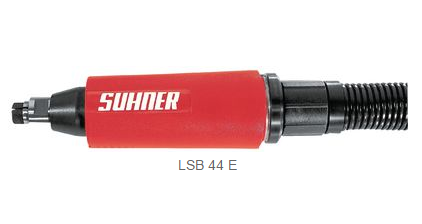

Type LSB 44 E-D with elastic spindle bearing, for tough use in toolmaking; exhaust air at the rear with sound insulation integrated into the hose, with rotary valve

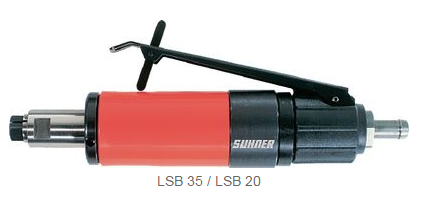

Type LSB 35 particularly compact and high-performance in minimum size, air exhaust to the front (without hose), rotary/ lever combi valve
LSB 20 very small and extremely powerful, exhaust air to the front (without hose), rotary/levercombi valve For collet chucks, type ZG 7, see 575500. Service units see 579670 - 579720.
