Features
- The air hose connection nipple is a 2-way type that can be used both up and down.
- The flow rate can be adjusted by operating the lever.
- It takes in outside air and amplifies the input air.
Specifications in detail
Maximum operating pressure: 1MPa
Lever type, increased volume nozzle, for both top and bottom use, nipple type
Lever type
nipple type
Operating temperature range: -10 to 60°C
Nozzle length (mm): 75
Nozzle aperture (mm): 16 (center 3)
Nozzle mounting port: G1/8
Air mounting port: G1/4
Total length (mm): 165
Fluid used: Compressed air

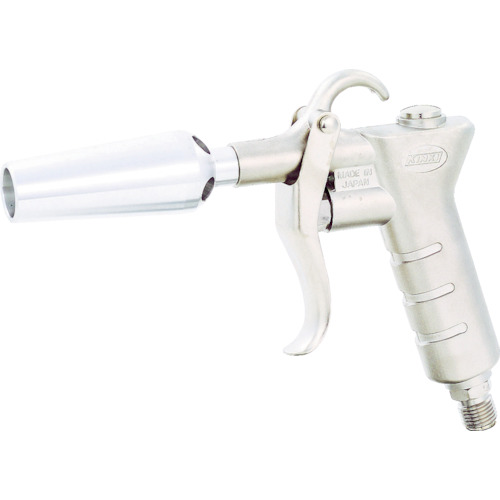

KINKI K-601-DX
