KANETEC MB-L-65A | KANETEC Việt Nam | HTGoods
Bạn cần giúp đỡ? Hãy gọi: 1900 98 68 25 hoặc sales@htgoods.com.vn

Thông tin sản phẩm

  • Ideal for fixing jigs and measuring devices.
  • This switchable thin permanent magnet holder is suitable for situations where delicate adjustments and precision are required.
  • The lever operating angle is half that of conventional products, allowing smooth ON/OFF operation with one hand.
  • Doubling the magnetic poles (4 poles) increases the adhesive power to thin plates!
  • It is a thin, strong magnet.
  • Although the overall height is very low, the magnetic force is strong.
  • The conventional black dyeing process has been abolished.
  • Resource conservation by reducing the number of parts.
  • It is an environmentally friendly and sustainable design.
  • It is a rectangular shape.
  • Ideal as a temporary mounting stand or base.
  • For subtle positioning adjustments and precision.
Specifications in detail
Adsorption power (N): 300
Width(mm):65
Depth (mm): 65
Height(mm):20
Mounting screw hole dimensions: M8 x 1.25/M4 x 0.7
Adhesive surface: bottom
Number of screw holes: 9

KANETEC MB-L-65A

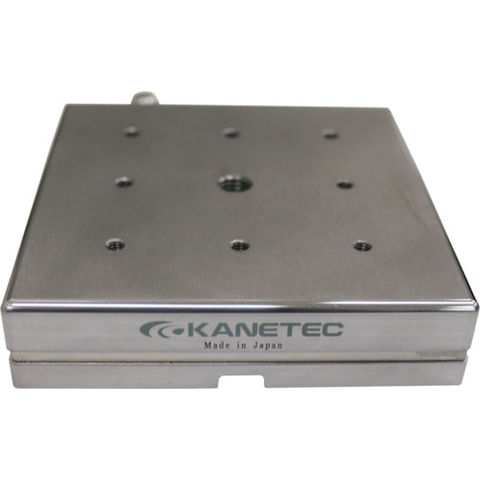

KANETEC Việt Nam | KANETEC Thin permanent magnet holder base, square, bottom adhesion force 300N MW5602623

Thương hiệu: KANETEC
Còn hàng
Liên hệ

MADE IN JAPAN

Ideal for fixing jigs and measuring devices. This switchable thin permanent magnet holder is suitable for situations where delicate adjustments and precision are required. The lever operating angle is half that of conventional products, allowing smooth ON/OFF operation with one hand. Doubling the magnetic poles (4 poles) increases the adhesive power to thin plates! It is a thin, strong magnet. Although the overall height is very low, the magnetic force is strong. The conventional black dyeing process has been abolished....
Xem thêm

Thông tin sản phẩm

  • Ideal for fixing jigs and measuring devices.
  • This switchable thin permanent magnet holder is suitable for situations where delicate adjustments and precision are required.
  • The lever operating angle is half that of conventional products, allowing smooth ON/OFF operation with one hand.
  • Doubling the magnetic poles (4 poles) increases the adhesive power to thin plates!
  • It is a thin, strong magnet.
  • Although the overall height is very low, the magnetic force is strong.
  • The conventional black dyeing process has been abolished.
  • Resource conservation by reducing the number of parts.
  • It is an environmentally friendly and sustainable design.
  • It is a rectangular shape.
  • Ideal as a temporary mounting stand or base.
  • For subtle positioning adjustments and precision.
Specifications in detail
Adsorption power (N): 300
Width(mm):65
Depth (mm): 65
Height(mm):20
Mounting screw hole dimensions: M8 x 1.25/M4 x 0.7
Adhesive surface: bottom
Number of screw holes: 9

KANETEC MB-L-65A
