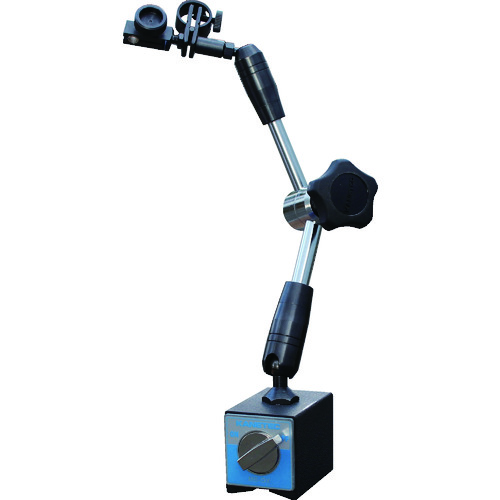

- You can lock into a variety of positions at once by tightening a single dial.
- Because it is hydraulic, it provides a higher fixing force than the mechanical lock type.
- Comes with micro adjustment function.
- Maintenance such as refilling oil is required.
- The arm is freely movable and can be locked at any position by tightening the knob.
- Used as a measuring instrument holder when measuring with a dial gauge type measuring instrument.
Specifications in detail
Measuring instrument mounting: 6mm and 8mm holes, with dovetail groove
With fine adjustment function
Adsorption force (N): 1000
Magnet width (mm): 50
Magnet depth (mm): 73
Magnet height (mm): 55
Arm mounting screw: M8 x 1.25
Measuring instrument mounting hole: 6mm, 8mm
KANETEC MB-OX
