Features

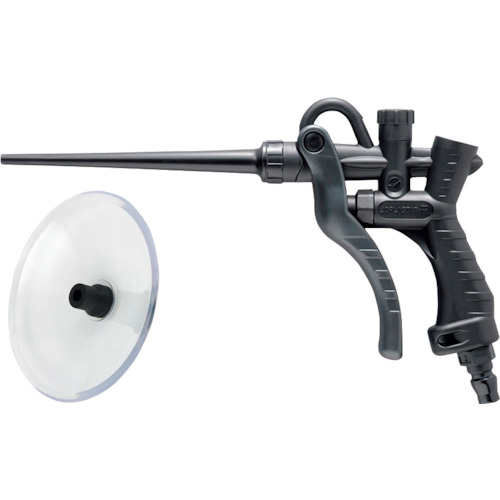

- Comes standard with a long PP nozzle that is unlikely to damage the target object even if it comes into contact with it.
- The highly visible transparent safety shield (made of PC) protects the operator from chips and splashes of liquid.
Applications
- For drying, cooling and cleaning with air blowing.
Specifications in detail
Normal operating pressure: 1.0MPa
Operating temperature range: 0 to 50°C
Connection only from below
Nozzle length (mm): 140
Nozzle aperture (mm): Φ3
Nozzle mounting port: M14×1.0
Air mounting port: G1/4
Total length (mm): 240
Nozzle type: Long nozzle + safety shield
Type: Floor piping
Nozzle outer diameter (mm): 20
Thickness (mm): 25
Operating air pressure (MPa): 1.0
Safety shield diameter (mm): φ100
JOPLAX TD-100H-TASPC
