Thông tin sản phẩm
Swivel type (with double stopper)
Plate Type
Bearings included
Locks the swivel and wheels simultaneously
Wheel diameter D(mm): 100
Type: Swivel (with double stopper)
Allowable load (daN): 117.6
Allowable load (kgf): 120
Wheel width(mm):32
Mounting height H(mm): 144
Mounting seat A(mm): 95
Mounting base B(mm): 95
Mounting pitch X(mm): 70-73
Mounting pitch Y(mm): 70-73
Mounting hole diameter P(mm): 10.5

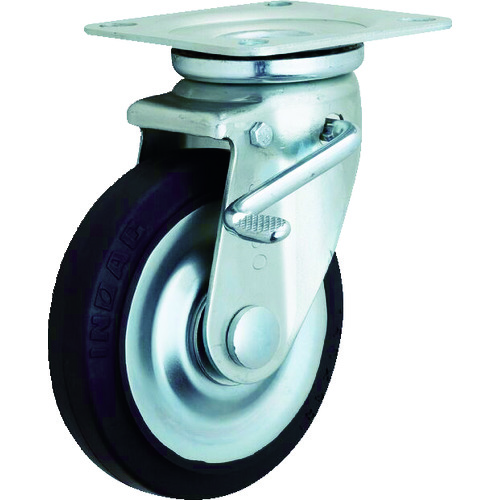

INOAC GR-100WJS
