Thông tin sản phẩm

Plate Type
Swivel type (with double stopper)
Locks the swivel and wheels simultaneously
Wheel diameter D(mm): 150
Type: Swivel (with double stopper)
Allowable load (daN): 196
Allowable load (kgf): 200
Wheel width(mm):35
Mounting height H(mm): 198
Mounting seat A(mm): 120
Mounting base B(mm): 120
Mounting pitch X(mm): 93-87
Mounting pitch Y(mm): 93-87
Mounting hole diameter P(mm): 11.5
Boss width B(mm): 55
Color: Black
Shaft diameter (mm): 20

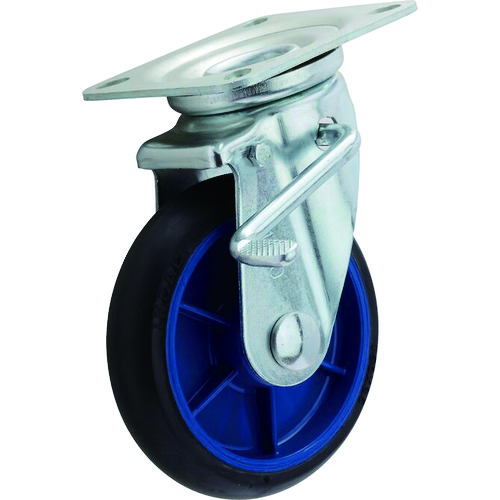

INOAC LR-150WJS-BK-20

INOAC Việt Nam | INOAC Low starting resistance W stopper with swivel bracket Φ150 black shaft Φ20 MW4835271

Thương hiệu: INOAC
Còn hàng
Liên hệ
Đặc tính
  • Low starting resistance makes it easy to handle.
  • Uses special rubber that has low starting resistance, durability and abrasion resistance.
  • It is expected to be effective in improving the working environment and reducing back pain.
  • Uses special rubber that has low starting resistance, durability and excellent abrasion resistance.<...
Xem thêm

Thông tin sản phẩm

Plate Type
Swivel type (with double stopper)
Locks the swivel and wheels simultaneously
Wheel diameter D(mm): 150
Type: Swivel (with double stopper)
Allowable load (daN): 196
Allowable load (kgf): 200
Wheel width(mm):35
Mounting height H(mm): 198
Mounting seat A(mm): 120
Mounting base B(mm): 120
Mounting pitch X(mm): 93-87
Mounting pitch Y(mm): 93-87
Mounting hole diameter P(mm): 11.5
Boss width B(mm): 55
Color: Black
Shaft diameter (mm): 20

INOAC LR-150WJS-BK-20
