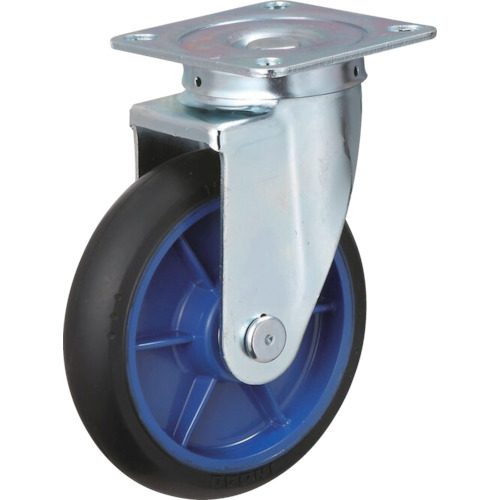

INOAC Việt Nam | INOAC Low starting resistance caster with swivel bracket Φ150 Black Shaft Φ20 MW4835247

INOAC Việt Nam | INOAC Low starting resistance caster with swivel bracket Φ150 Black Shaft Φ20 MW4835247

INOAC Việt Nam | INOAC Low starting resistance caster with swivel bracket Φ150 Black Shaft Φ20 MW4835247

Thương hiệu: INOAC

Liên hệ

Đặc tính

Low starting resistance makes it easy to handle.
Uses special rubber that has low starting resistance, durability and abrasion resistance.
It is expected to be effective in improving the working environment and reducing back pain.

Ứng dụng

Ideal for roll boxes (cage cars) use...

Xem thêm

Các thương hiệu bán chạy

Thông tin sản phẩm

Plate Type
Free-standing
Wheel diameter D(mm): 150
Type: Swivel (with stopper)
Allowable load (daN): 196
Allowable load (kgf): 200
Wheel width(mm):35
Mounting height H(mm): 198
Mounting seat A(mm): 120
Mounting base B(mm): 120
Mounting pitch X(mm): 93-87
Mounting pitch Y(mm): 93-87
Mounting hole diameter P(mm): 11.5
Boss width B(mm): 55
Color: Black
Shaft diameter (mm): 20

INOAC LR-150WJ-BK-20
