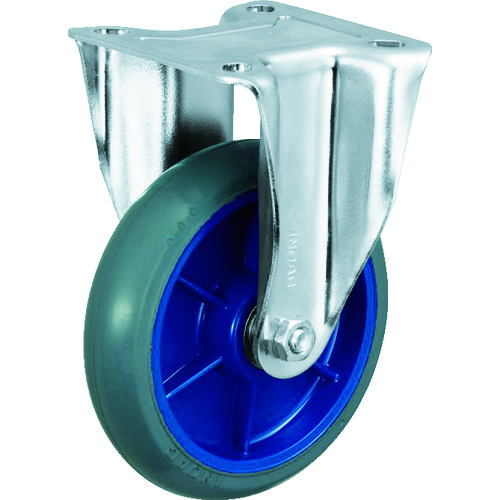

INOAC Việt Nam | INOAC Low starting resistance caster with fixing bracket Φ150 Gray MW4835301

INOAC Việt Nam | INOAC Low starting resistance caster with fixing bracket Φ150 Gray MW4835301

Thông tin sản phẩm

Plate Type
Fixed
Wheel diameter D(mm): 150
Type: Fixed
Allowable load (daN): 196
Allowable load (kgf): 200
Wheel width(mm):35
Mounting height H(mm): 191
Mounting seat A(mm): 102
Mounting seat B(mm): 102
Mounting pitch X(mm): 75-80
Mounting pitch Y(mm): 75-80
Mounting hole diameter P(mm): 11
Boss width B(mm): 53
Color: Gray
Shaft diameter (mm): 12

INOAC LR-150WK-GR

INOAC Việt Nam | INOAC Low starting resistance caster with fixing bracket Φ150 Gray MW4835301

Thương hiệu: INOAC

Liên hệ

Đặc tính

Low starting resistance makes it easy to handle.
Uses special rubber that has low starting resistance, durability and abrasion resistance.
It is expected to be effective in improving the working environment and reducing back pain.
Uses special rubber that has low starting resistance, durability and excellent abrasion resistance.<...

Xem thêm

Các thương hiệu bán chạy

Thông tin sản phẩm

Plate Type
Fixed
Wheel diameter D(mm): 150
Type: Fixed
Allowable load (daN): 196
Allowable load (kgf): 200
Wheel width(mm):35
Mounting height H(mm): 191
Mounting seat A(mm): 102
Mounting seat B(mm): 102
Mounting pitch X(mm): 75-80
Mounting pitch Y(mm): 75-80
Mounting hole diameter P(mm): 11
Boss width B(mm): 53
Color: Gray
Shaft diameter (mm): 12

INOAC LR-150WK-GR
