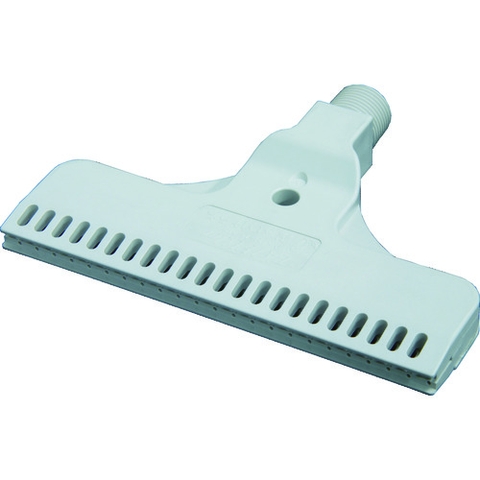

Ikeuchi Việt Nam | Ikeuchi wide flat air nozzle TAIFUJet series PPS resin screw 3/8 male φ1.0 MW4850661

Ikeuchi Việt Nam | Ikeuchi wide flat air nozzle TAIFUJet series PPS resin screw 3/8 male φ1.0 MW4850661

Thông tin sản phẩm

Official manufacturer part number: 3/8M TF-F 121-46-010 PPS
Air consumption (NL/min): 1250 (at 0.3MPa)
Nozzle installation port: R3/8
Nozzle shape: Wide flat type
Nozzle width (mm): 121
Nozzle length (mm): 90
Nozzle diameter (mm): 1.0
Air installation port: R3/8
Exhaust outer diameter ( mm): 121
Width (mm): 121
Total length (mm): 90
Thread size: R3/8
Thread size: R3/8

Ikeuchi 3/8MTF-F121-46-010PPS

Ikeuchi Việt Nam | Ikeuchi wide flat air nozzle TAIFUJet series PPS resin screw 3/8 male φ1.0 MW4850661

Thương hiệu: Ikeuchi

Liên hệ

This is an air nozzle that powerfully sprays amplified air from a 1.0mm hole.
Unique flat design that sprays air more evenly.
Since it is approximately three times as wide as the conventional product (42mm width), the number of nozzles can be reduced and installation effort can be reduced.

Ikeuchi 3/8MTF-F121-46-010PPS

Xem thêm

Các thương hiệu bán chạy

Thông tin sản phẩm

Official manufacturer part number: 3/8M TF-F 121-46-010 PPS
Air consumption (NL/min): 1250 (at 0.3MPa)
Nozzle installation port: R3/8
Nozzle shape: Wide flat type
Nozzle width (mm): 121
Nozzle length (mm): 90
Nozzle diameter (mm): 1.0
Air installation port: R3/8
Exhaust outer diameter ( mm): 121
Width (mm): 121
Total length (mm): 90
Thread size: R3/8
Thread size: R3/8

Ikeuchi 3/8MTF-F121-46-010PPS
