Features
- This measuring instrument is essential for daily inspection of anti-static products.
- Includes a personalized calibration certificate, test report and traceability chart.
- Comes with dedicated electrodes that comply with standards and a lightweight soft case that is convenient for carrying and storing.
- Equipped with two mode switching functions (20 seconds, 35 seconds off mode switching type).
- In the 20 sec off mode, the measurement value is held for the measurement time specified by the standard (after 15 seconds).
Applications
- Performance evaluation of anti-static products.
- Measuring the earth resistance of tools and conductive color mats
- Measurement of point-to-point resistance/surface resistance of conductive color mat
- Capable of measuring all items that require resistance management
Specifications in detail
Applied voltage: 10V when the target is less than 1x10(to the power of 6) Ω, 100V when the target is 1x10(to the power of 6) Ω or moreAccuracy
: ±10% (depending on the operating environment range)
Battery life: More than 1000 times (in continuous measurement mode)
With auto power off
functionExternal dimensions: Main unit: 85 (W) x 40 (H) x 170 (D) mm (excluding protrusions) / Electrode: 79mmφ x 110mm (conductive pad part 63.5mmφ) / Case: 290 (W) x 170 (H) x 130 (D) mmPower
supply (V): Stack
width (mm): 130Depth
(mm): 290Height
(mm): 170Measurement
range: 9x10[[to the power of 2]] Ω or more, 2x10[[to the power of 12]] Ω or less

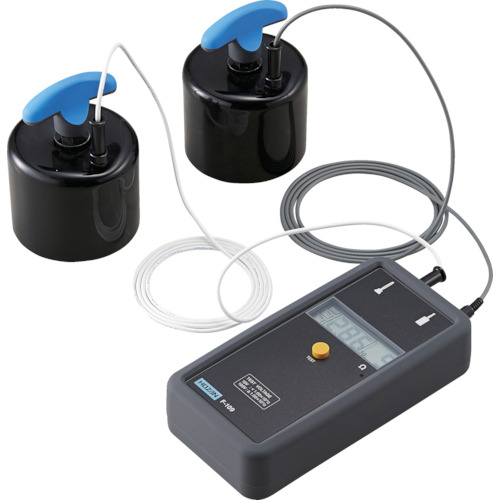

HOZAN F-109-TA
