Features
- High-performance surface resistance meter that can judge pass/fail and store data. It can maintain and manage the quality of anti-static items. It can measure the resistance value of anti-static items according to RCJS/JIS/IEC/ANSI standards.
- The measurement range covers a wide range of items, from equipment (conductive color mats, etc.) to the human body (wrist straps, etc.).
- It comes with a pass/fail judgment function (LED lighting/buzzer sounding) that allows you to freely set the threshold value, and can be used according to the purpose, such as in-house management values or standard values.
- It is also ideal for field workers as it allows for intuitive judgment.
- Measurement results can be saved on an SD card, and can also be output directly to a PC from the output terminal (serial communication method. A list of commands is available here. PC software and connection cables are not provided. Please prepare your own).
- By connecting a commercially available barcode reader, barcode information can be added to the measurement results (a barcode generation page is available).
- The measurement target and the measurement results can be linked, greatly reducing the workload of on-site managers.
- The unit has a built-in thermometer and hygrometer (cannot be calibrated/reference value) that is automatically added to the measurement results.
- Equipped with a function to switch between two measurement modes (hold/constant measurement mode switchable).
- In hold mode, the measurement value is held for the measurement time specified by the standard (after 15 seconds) and then automatically turns off after 5 seconds.
Specifications in detail
Judgment function range: When the threshold is within the PASS range, the PASS lamp lights up (buzzer sounds), when it is outside the range, the FAIL lamp lights up (buzzer does not sound) / Fixed threshold 1 (wrist strap): PASS 7.50×10^5Ω≦R≦3.49×10^7Ω / Fixed threshold 2 (footwear): PASS 1.00×10^5Ω≦R≦9.99×10^7Ω / Free threshold (up to three thresholds can be saved): PASS (9.00×10^2Ω to 9.99×10^10Ω)≦R≦(9.00×10^2Ω to 9.99×10^10Ω)
Applied voltage: 10V (fixed)/100V (fixed)/10V・100V (automatic switching)
Automatic switching: When the object to be measured is 1.00×10(to the power of 6)Ω or more, 100V/When the object to be measured is less than 1.00×10(to the power of 6)Ω, 10VAccuracy
: ±10% (however, when the object to be measured is 1.00×10^[to the power of 11]Ω or more, it is ±20%) (Reference RCJS-5-1 Requirements: Equipment used in acceptance testing Accuracy: ±20%)
Continuous use time: Approximately 90 minutes
External dimensions (main unit): 135 (W) x 68 (H) x 236 (D) mm (excluding protrusions)
External dimensions (electrode): 79 mmφ x 110 mm (conductive pad part 63.5 mmφ)
External dimensions (carrying case): 400 (W) x 200 (H) x 200 (D) mm
Recording media: SD/SDHC/SDXC Memory card (up to 128GB)
Weight: 6.4kg [Main unit: 715g, Electrode: 2.3kg (1 piece)]
Measurement range (kV): 9.00 x 10[[to the power of 2]] Ω or more, 2.00 x 10[[to the power of 12]] Ω or less
Power supply (V): Built-in rechargeable battery / DC12V (AC adapter included)
Width (mm): 135
Depth (mm): 236
Height (mm): 68
Power supply: Built-in rechargeable battery / DC12V (AC adapter included)

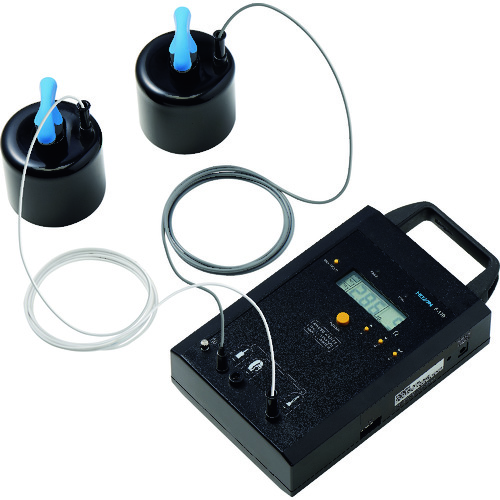

HOZAN F-110
