- Noise filters prevent counting errors.
- It is small, lightweight, and pocket-sized so you don't have to worry about space.
- It is a two-item display type that is easy to understand at a glance.
- Data can be transferred to a PC without stopping recording.
- You can replace the battery while recording. (Recording continues for about 30 seconds even if the battery is removed.)
- The maximum recording capacity is twice as large as conventional models (60,000 data per channel).
- Measurement data will not be lost even if the battery runs out.
- The previous recorded data is backed up, so you can rest assured even if you make a mistake.
- Record the flow meter output.
- For recording rainfall.
Specifications in detail
Measurement range: Non-voltage contact signal (counts when terminals change from short to open) Voltage (counts when voltage level becomes "Hi") [Hi]: +2V to +45V [Lo]: 0V to +0.5V
Interface: Communication adapter or data collector and infrared communication
Power supply: 1 AA alkaline battery (LR06) (included)
Recording mode: Instantaneous value recording (records instantaneous values at each recording interval), statistical recording (measures at 1 second intervals and records instantaneous/max/min/average values at each recording interval)
Recording interval: 1/2/5/10/12/20/30 seconds, 1/2/5/10/15/20/30/60 minutes, 1 day
Recording capacity: Instantaneous recording (60,000 data/1ch), statistical recording (15,000 data/1ch)
Display contents: Measurement value, recording interval, date, time, alarm, remaining battery level, number of recorded data, maximum value, minimum value
Function: Data backup (backup the previous recorded data)
Width(mm):79
Depth (mm): 28
Height (mm): 57
Compatible models: LR5011
Voltage (V): Hi 2 to 45, Lo 0 to 0.5

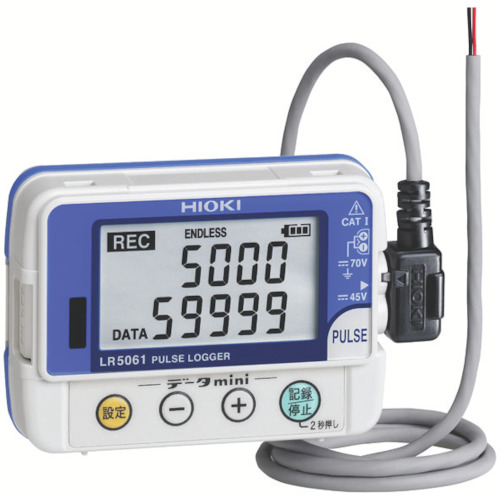

HIOKI LR5061
