Features
- This is a LAN cable tester that can even tell you where the cable is broken.
- It also has a wiremap function that can detect split pairs.
- It is equipped with a cable length measurement function that allows you to check the location of a broken wire.
- It also has a direction check function that allows you to identify each cable.
Applications
- For checking LAN cables when laying them.
Specifications in detail
Measurable cables: Twisted pair cables, characteristic impedance 100Ω, shielded/unshielded, CAT 3, 4, 5, 5e.6
Measurable connectors: RJ-45 connectors
Wiremap inspection: Open, short, reverse, transpose, split, other (miswired)
Directional measurement: Up to 21 cables can be identified using accessories and options
Power supply (V): 2 AA batteries (LR6) (included)
Width (mm): 85
Depth (mm): 33
Height (mm): 130
Cable length measurement (m): 2 to 300
Power supply: 2 AA batteries (LR6) (included)
Cable length (m): 2 to 300
Wiremap inspection: Yes
Directional measurement: Yes
Continuous use time (h): 50h

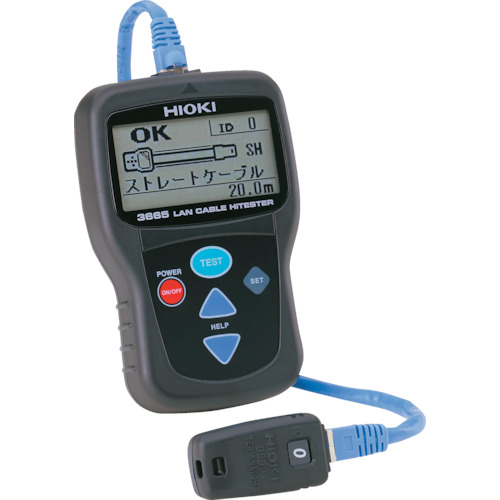

HIOKI 3665
