Features
- JIS C 1302 certified product.
- Equipped with Bluetooth(R).
- Comes with a comparator function.
- Equipped with automatic DC/AC detection function.
- Bar graph display for improved visibility (IR4054 only)
- Stable display and high-speed measurement, with a comparator judgment result response time of 0.8 seconds.
- It has a robust design (drop-proof) that can withstand a fall of 1m.
- In addition to AC, it also has a DC voltage measurement function that is useful for electric vehicles, solar panels, etc.
- Equipped with Bluetooth, measurement values can be sent to a smartphone or tablet, improving work efficiency (for details, see the GENNECT Cross homepage https://gennect.net/).
Applications
- For measuring insulation resistance.
- For maintenance and management of solar power generation systems.
- For the installation of solar power generation systems.
- For electrical construction work.
- For building maintenance and facility construction.
- For inspection and maintenance work.
- For communication equipment and instrumentation equipment (new construction and regular inspections).
- For design work.
Specifications in detail
Compliance standards: JIS C 1302 certified, EN61010 (safety), EN61326 (EMC), EN61557 (insulation resistance meter)
Measurement range (V): 50/125/250/500/1000
PVΩ measurement (V): 500/1000
Measurement functions: low resistance, AC voltage, DC voltage, continuity
Functions: Bluetooth, backlight, drop proof, automatic AC/DC discrimination, comparator, fuse break detection, live wire warning, discharge function, auto power save (APS)
Rated measurement voltage (V/MΩ): 50/100, 125/250, 250/500, 500/2000, 1000/4000
Minimum display (MΩ): 0.001
AC voltage (V): 600
Width (mm): 152
Depth (mm): 40
Height (mm): 92
Power supply (V): 4 AA alkaline batteries (LR6) (included)

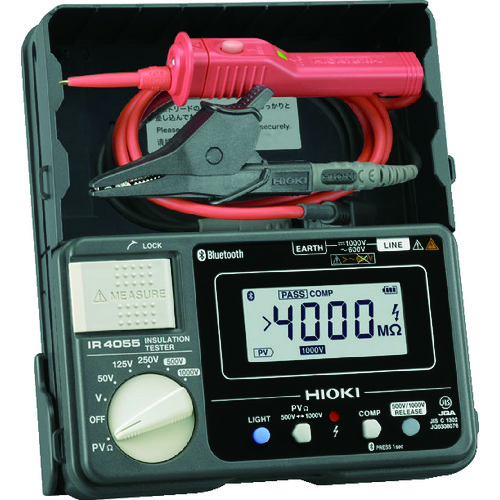

HIOKI IR4055-11
