(DC current range) 1000A (maximum display 999.9A), basic accuracy: ±1.3%rdg.±0.3A (at 30.1A-999.9A) (AC current range) 1000A (maximum display 999.9A, 10Hz to 1kHz, true RMS rectification), basic accuracy 45-66Hz: ±1.8%rdg.±0.3A (at30.1A-900.0A) (crest factor) 1000A range: 1.5 (DC + AC current range) 1000 A (DC, 10Hz to 1kHz) , true RMS rectification), basic accuracy DC, 45-66Hz: ±1.3%rdg.±1.3A (at30.1A-900.0A) (DC voltage range) 600.0mV to 1000V (AC voltage range) 6.000 V to 1000V, 4 ranges (15 to 1kHz, true RMS rectification), basic accuracy 45-66Hz: ±0.9%rdg.±0.003V (at6V) (AC + DC voltage range) 6.000V to 1000V, 4 ranges, Basic accuracy DC, 45-66Hz: ±1.0%rdg.±0.013V (at6V)
(DC power range) 0.000 kVA to 1000 kVA, basic accuracy: ±2.0%rdg.±20dgt.
(Resistance range) )600.0Ω to 6.000MΩ, 5 ranges, basic accuracy: ±0.7%rdg.±0.5Ω(at600Ω)
(Capacitance range) 1.000μF to 1000μF, 4 ranges, basic accuracy: ±1.9%rdg.± 0.005μF (at1μF)
(Frequency range) 9.999Hz to 999.9Hz, 3 ranges, basic accuracy: ±0.1%rdg.±0.003Hz (at9.999Hz)
(Temperature (K)) -40.0 to 400.0 °C, accuracy: ±0.5% rdg.±3.0 °C + temperature probe accuracy addition Dustproof and waterproof: IP54 (during storage or current measurement of insulated conductors) Other functions: continuity check, diode check, AC/DC automatic discrimination, Positive/negative judgment of DC current/voltage, maximum/minimum/average/maximum peak value/minimum peak value display, low-pass filter, display value hold, backlight, auto power save, buzzer sound, zero adjustment, etc. Power supply : AAA alkaline batteries (LR03) x 2, approximately 40 hours (Z3210 not installed) Measurable conductor diameter: Φ34mm Direct current (A): 1000 Alternating current (A): 1000 >DC voltage (V): 1000
AC voltage (V): 1000
Resistance (Ω): 6M
Calibration documents: 〇
Width (mm): 65
Depth (mm) : 35
Height (mm): 242

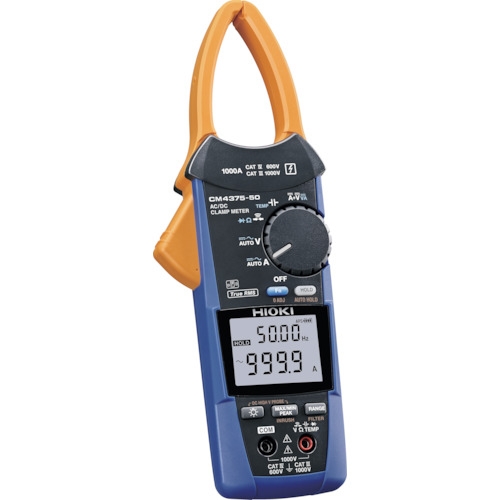

Product name: AC/DC clamp meter CM4375-50 with 3 documents

Hioki Electric CM4375-50SYORUI3TENTUKI
